Características
- Support parameter modifications such as SN/ONUID/VENDORID/MAC/LOID…
- Supports port speed limit and bandwidth control
- Fully compatible with IEEE802.3ah and ITU-U G.984 standards
- Supports up to 20KM transmission distance
- Supports data encryption, broadcast suppression, VLAN configuration, etc
- Supports Dynamic Bandwidth Allocation (DBA)
- Support ONU automatic discovery/link detection/remote software upgrade
- Support port forwarding configuration
- Support power outage alarm
- Support QoS configuration
- Support port isolation
- Supports fire protection settings
- Support ACL
- Support TR069 management method
- Supports PPPoE/DHCP Server/IPTV/NAT
Especificación
| Modelo | LL-XZ110 |
| Chips | RTL9601DVA |

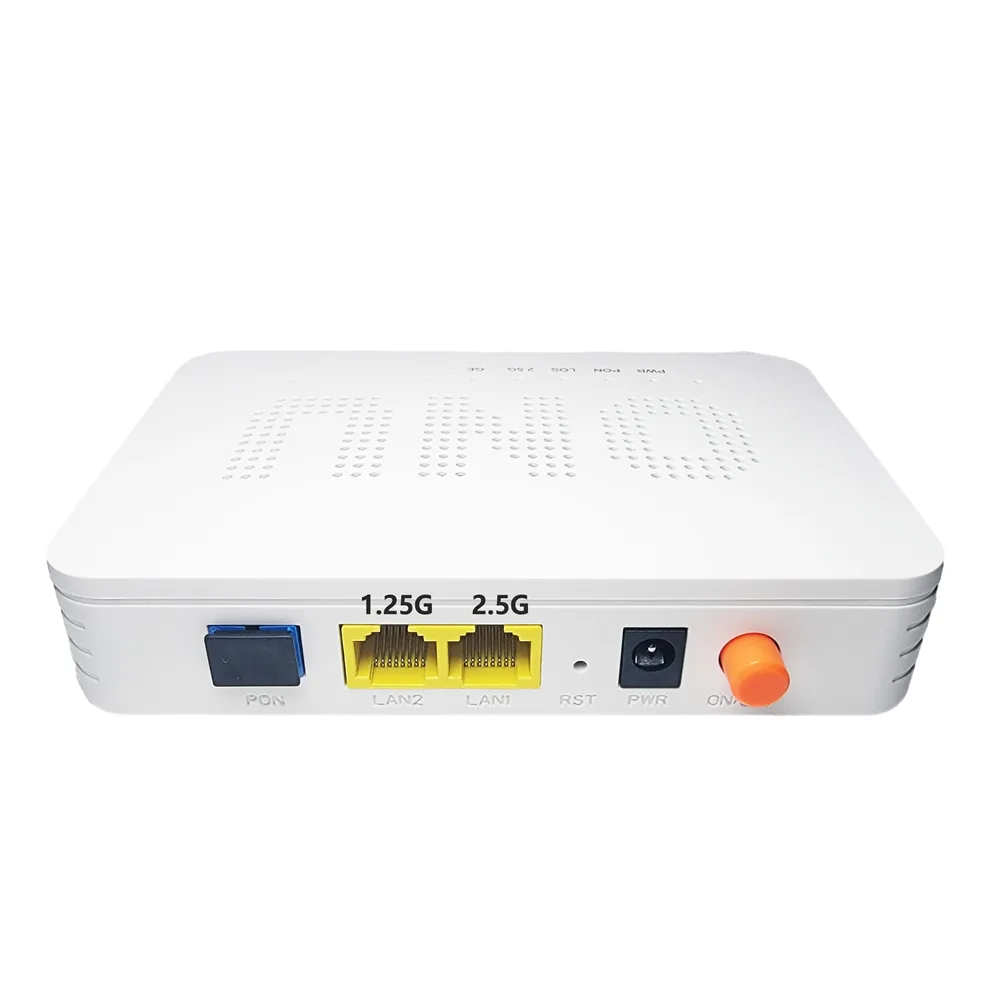

| Puerto Ethernet | Auto MDI/MDI-X 1*10/100/1000/2500M 1*10/100/1000M 100m Cable Max Distance |
| Puerto PON | Auto GPON/EPON SC-UPC 20km Fiber Max Distance |
| IN GPON | UP 1.25G / DOWN 2.5G |
| IN EPON | UP 1.25G / DOWN 1.25G |
| Receiver Sensitivity | -7dbm~-28dbm |
| Product Size | 132x83x30mm |
| Temperatura de funcionamiento | -10℃~60℃ |
| Power Adapter | DC 12V 2.1×5..5mm |
| Product Management | WEB/TELNET/TR069/OMCI/OAM |
