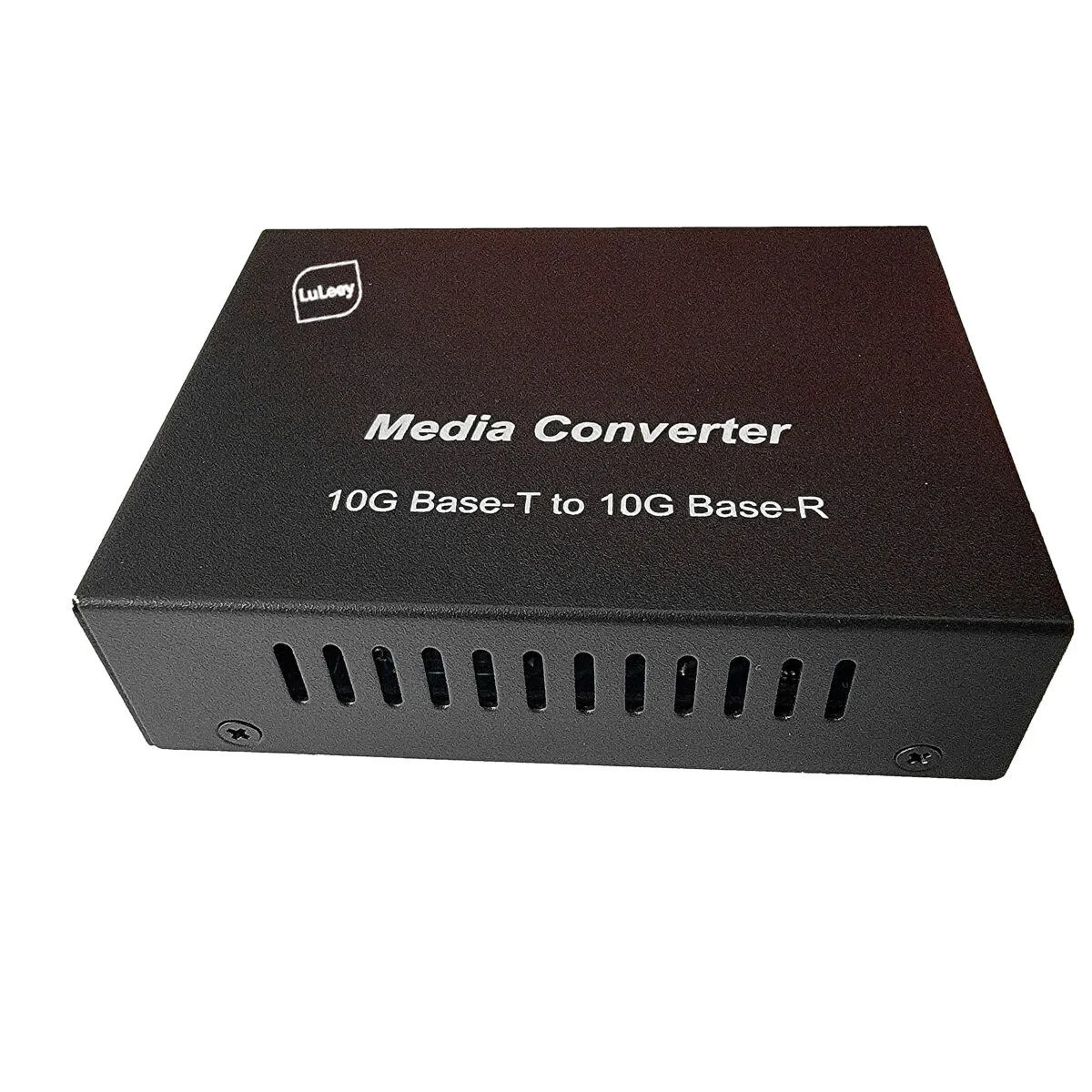

10G Media Converter
10g fiber media converter support two types of media network connections, such as 10GBase-T and 10GBase-R. Designed with 10Gbase Ethernet PHY chip, it can smoothly connect two types of network segments. The transceiver can be used as a stand-alone unit or as an embedded module in a 19 “converter rack for use in the central wiring room. The production of the product is carried out completely in accordance with the standard process,which effectively guarantees the reliability and safety of the product. This series of products can realize the conversion of data signals in two different transmission media of twisted pair and optical fiber in the new high-speed Ethernet optical fiber network, meeting the needs of long-distance and high-speed Ethernet users, and is ideal for users of telecommunications, broadcasting, and broadband networks. Fiber optic transmission equipment 10G Media Converter.
Features
- Copper port can adapt to parallel/crossover connection;
- IEEE802.3x flow control supporting full duplex;
- Support half-duplex back pressure flow control;
- Optical wavelength 850nm, 1310nm, 1550nm optional;
- Can be work with 10g epon stick/XGS-PON stick
- Can work under the temperature of 0℃~60℃;
Specification
| Model | LL-SFPMC10G |
| Standard | 1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T, 10GBase-R |
| RJ45 Rate | 100/1000Base-T,2.5/5/10GBase-T Auto |
| RJ45 Cable type | UTP-6e or higher |
| RJ45 Transmission distance | 0-~100m |
| Optical port type | SFP+ |
| Optical port Rate | 10Gbps |
| Optical port multimode | 50/125um |
| Optical port single mode | 9/125um |
| Optical port transmission distance | 300m~80km |

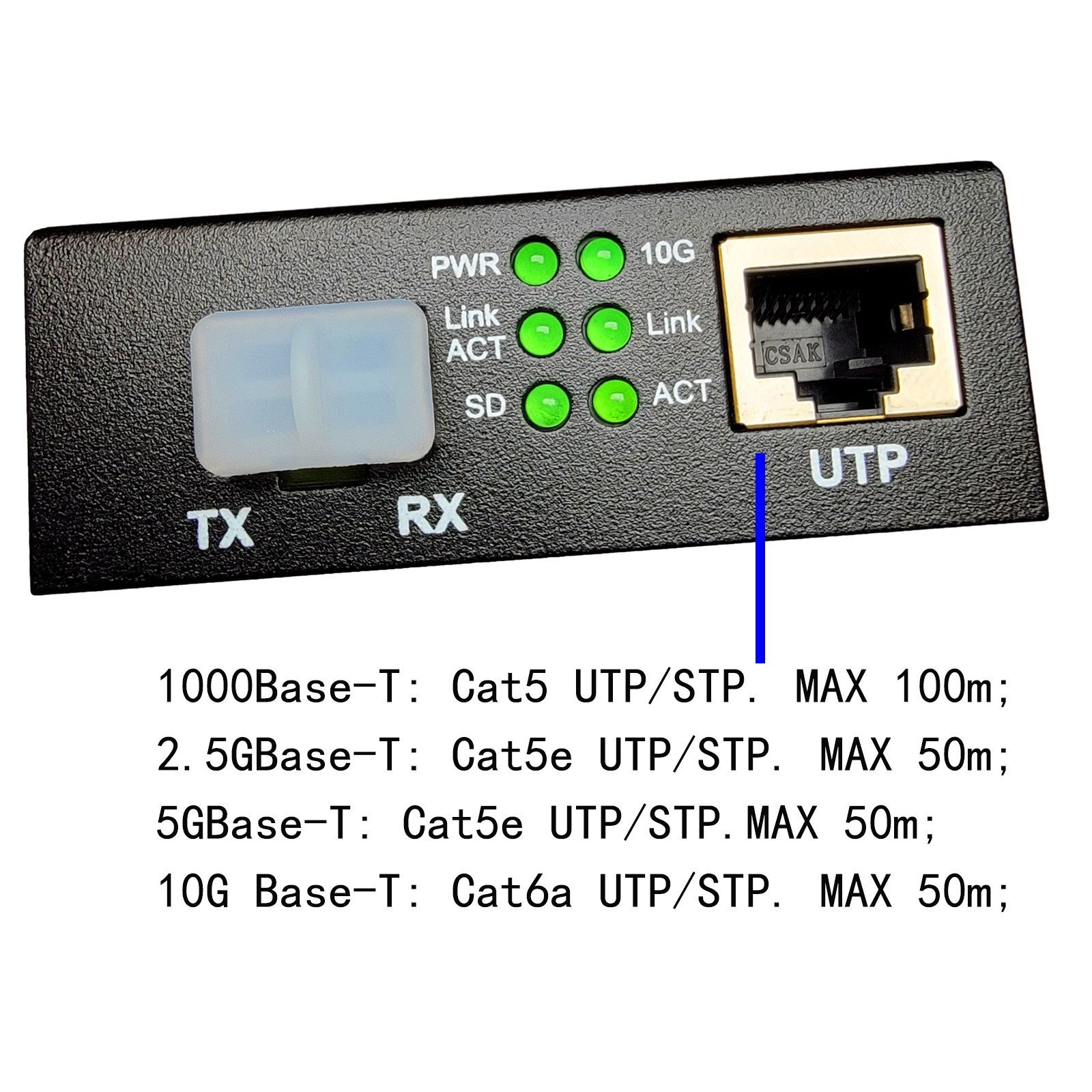

| LED | PWR, Link/Act(FX), SD, Link, Act, 10G |

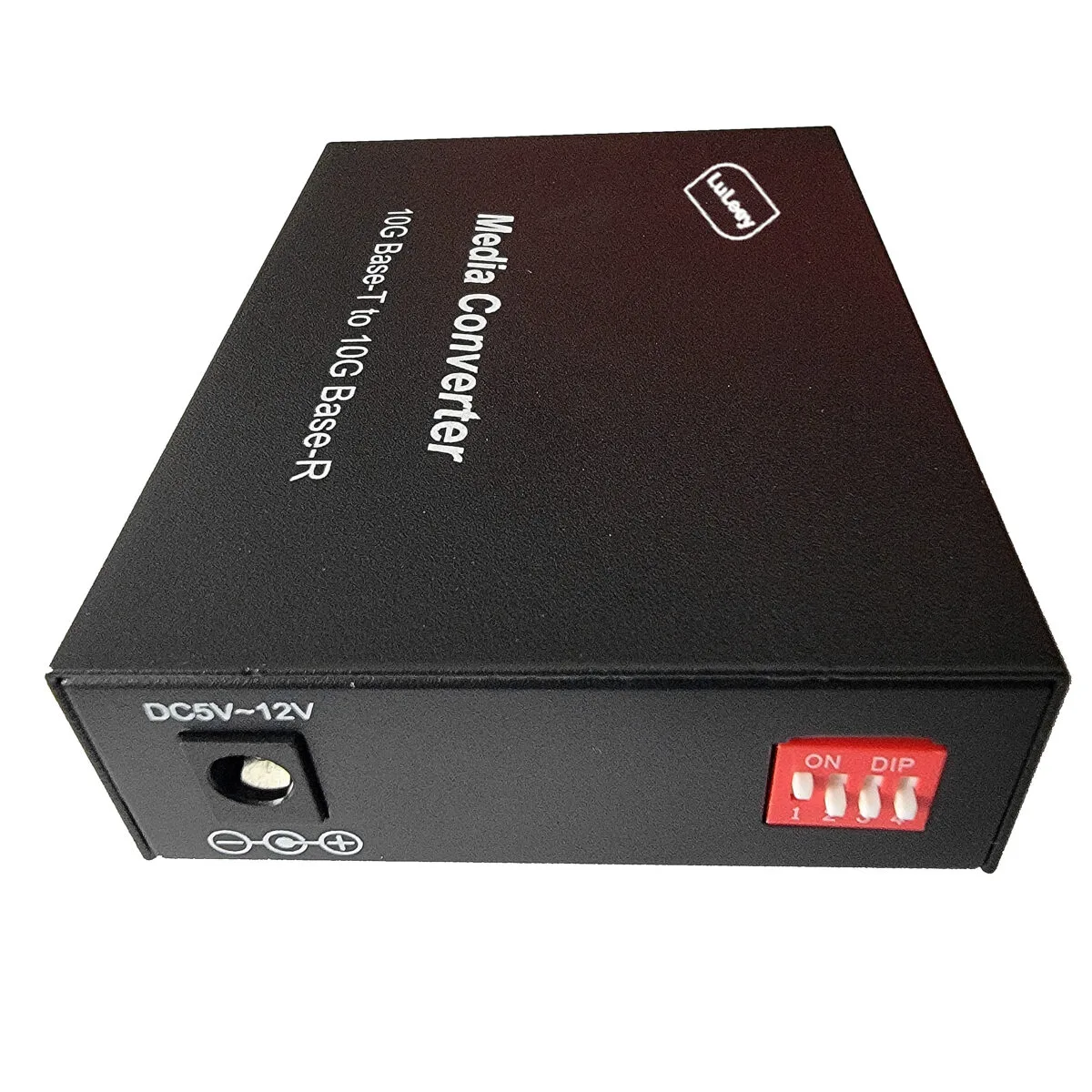

| Input voltage | DC12V |

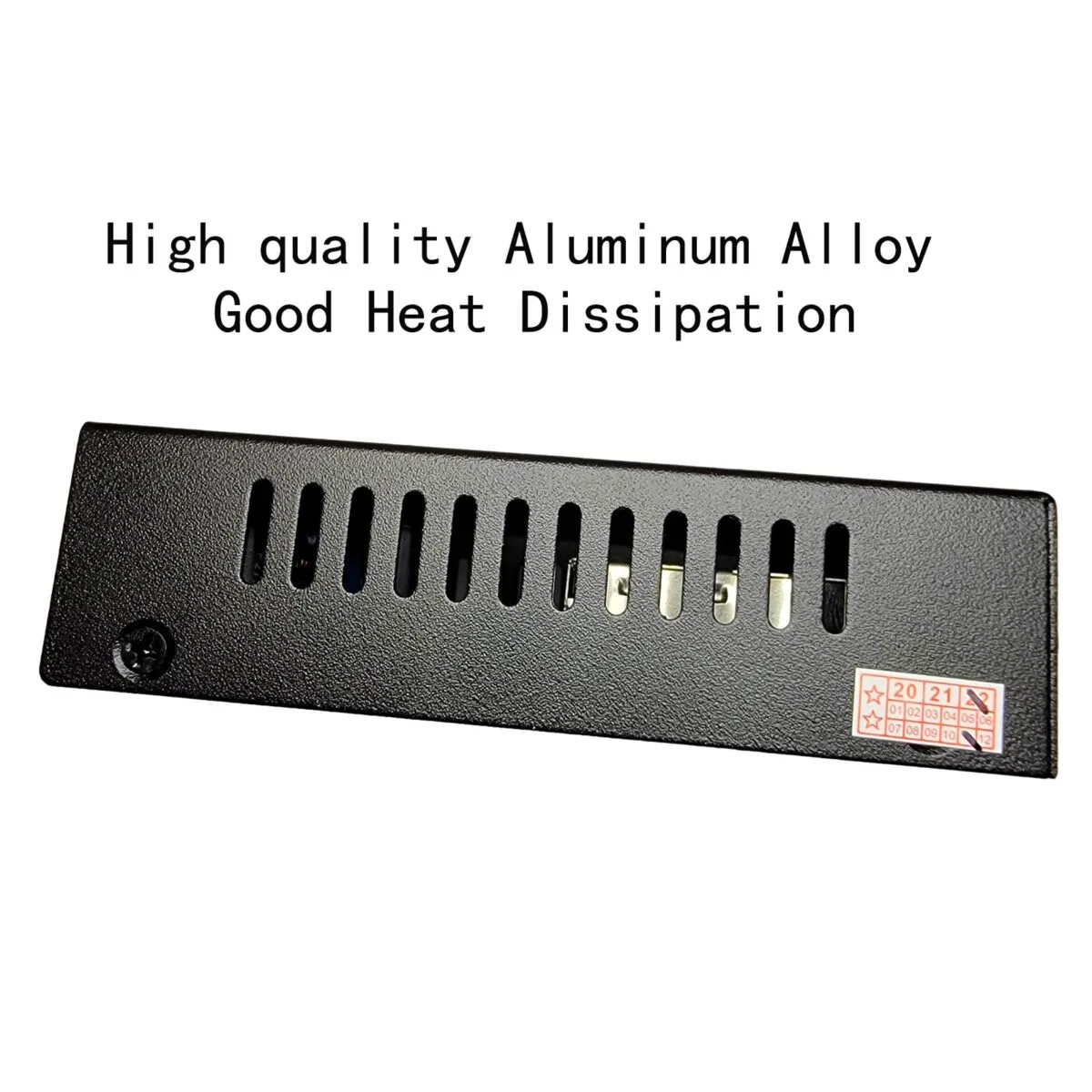

| Shell | iron shell |
| Size | 94mm*70mm*26mm |
| Weight | 0.32KG |
| Installation method | desktop |
| Operating temperature | 0~ 60°C (32 ~ 140°F) |
| Relative humidity of the environment | Â 5 ~ 80% (non-condensing) |
| 10GBaseFX | ||
| Multimode | Single mode | |
| wavelength | 850 nm | 1310 |
| Maximum transmit | 1 dBm | 0 dBm |
| Minimum transmit | -6 dBm | -6 dBm |
| Receiving sensitivity | -12 dBm | -13 dBm |
| Link budget | 6 dBm | 7 dBm |
| Typical distance | Â Â 300m | 10 km |
| Saturation | -3 dBm | -3 dBm |
