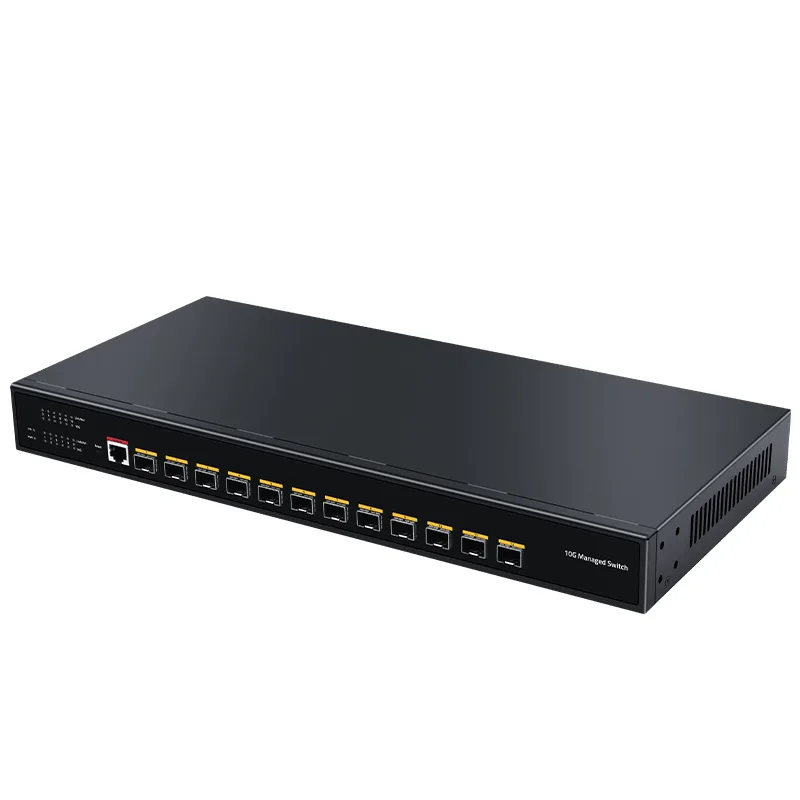

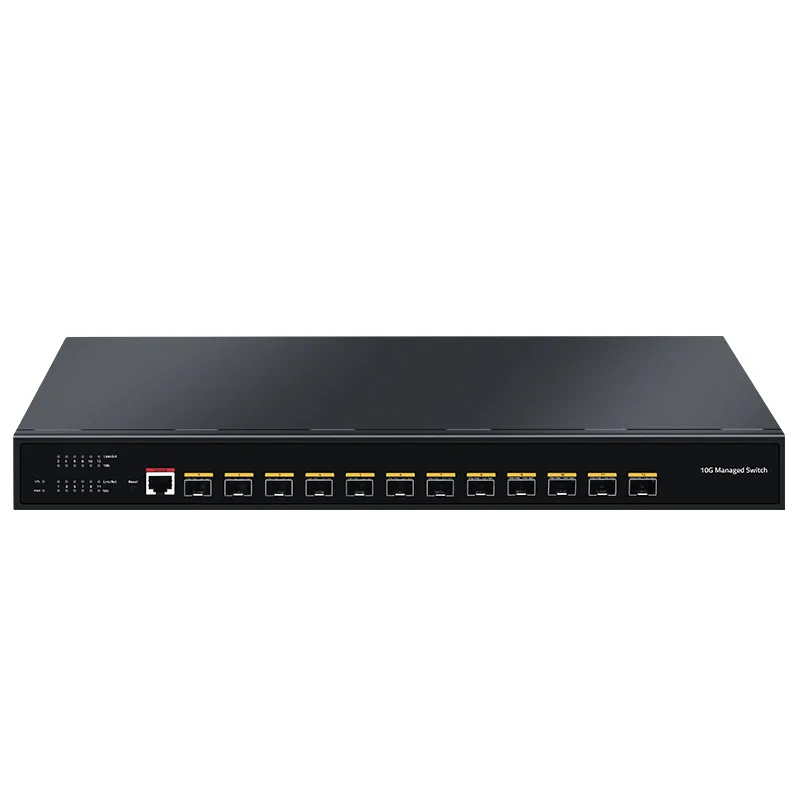

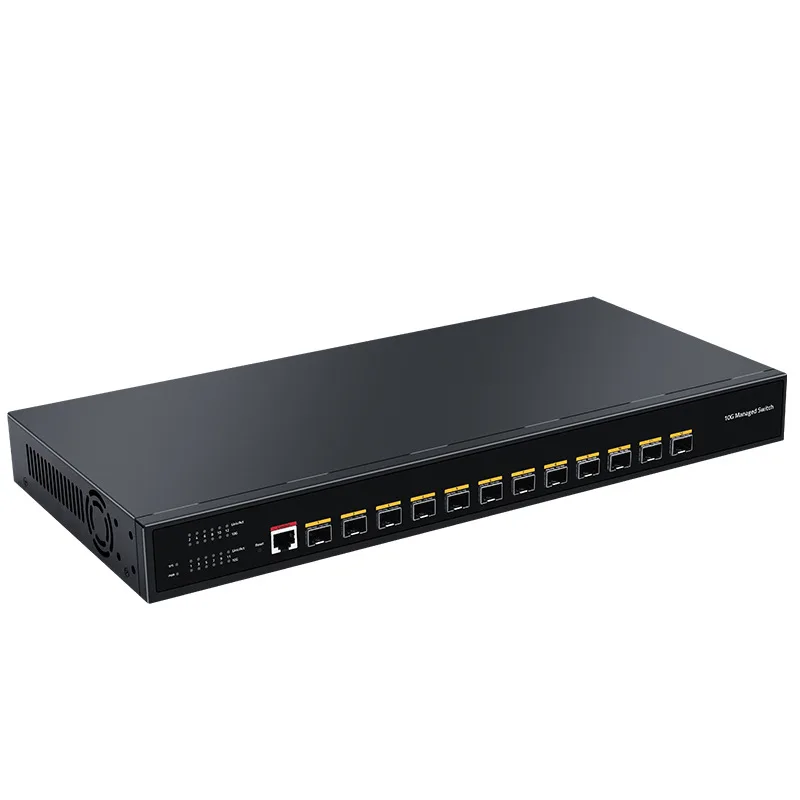

Features
- 10G transmission rate
- 12 ports 10 Gigabit SFP+, switch 10gb
- Supports 3-layer routing
- Metal appearance, heat dissipation design
- Built in bass cooling fan
- Supports protocols such as routing, DHCP, VLAN, ACL, QOS, etc
- Support services such as ring network protection and storm suppression
- Support WEB/LLDP/CLI/SNMP management services
Specification
| Model | LL-L3MES-SW-10G-12SFP+ |
| Â Port | 12 sfp+ |
| Network protocol | IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3z IEEE802.3ae IEEE802.3x IEEE802.3az IEEE802.3ad IEEE802.1AB IEEE802.1D IEEE802.1w IE802.1s IEEE802.1Q IE802.1p IEEE802.1X |
| Backplane bandwidth | 240Gbps |
| Packet forwarding rate | 178.56Mpps |
| MAC address | 32K |
| Forwarding mode | Store and forward |
| Fiber optic medium | multimode fiber: 50/125, 62.5/125, 100/140UM, |
| Single mode fiber | 8/125, 8.7/125, 9/125, 10/125UM |
| Size specification | Â 440 * 205 * 44mm |

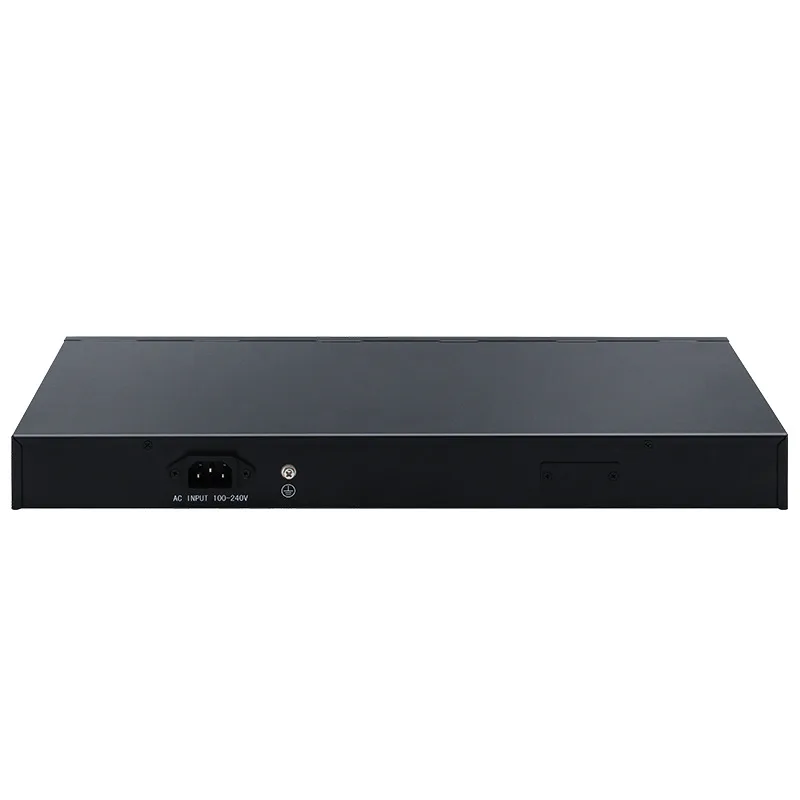

| Power supply voltage | Â AC 100-240V 50/60Hz |
| Indicator light: | PWR on: device powered on, not on: device not powered on
SYS on: system normal, flashing: system restart 10G on: 10G link Link/ACT on: link connected, flashing: data transmission, not on: link not connected |
| Working environment | Working temperature: -10~50 ℃
Storage temperature: -40~70 ℃ Working humidity: 10%~90%, non condensing Storage humidity: 5%~90%, no condensation |
