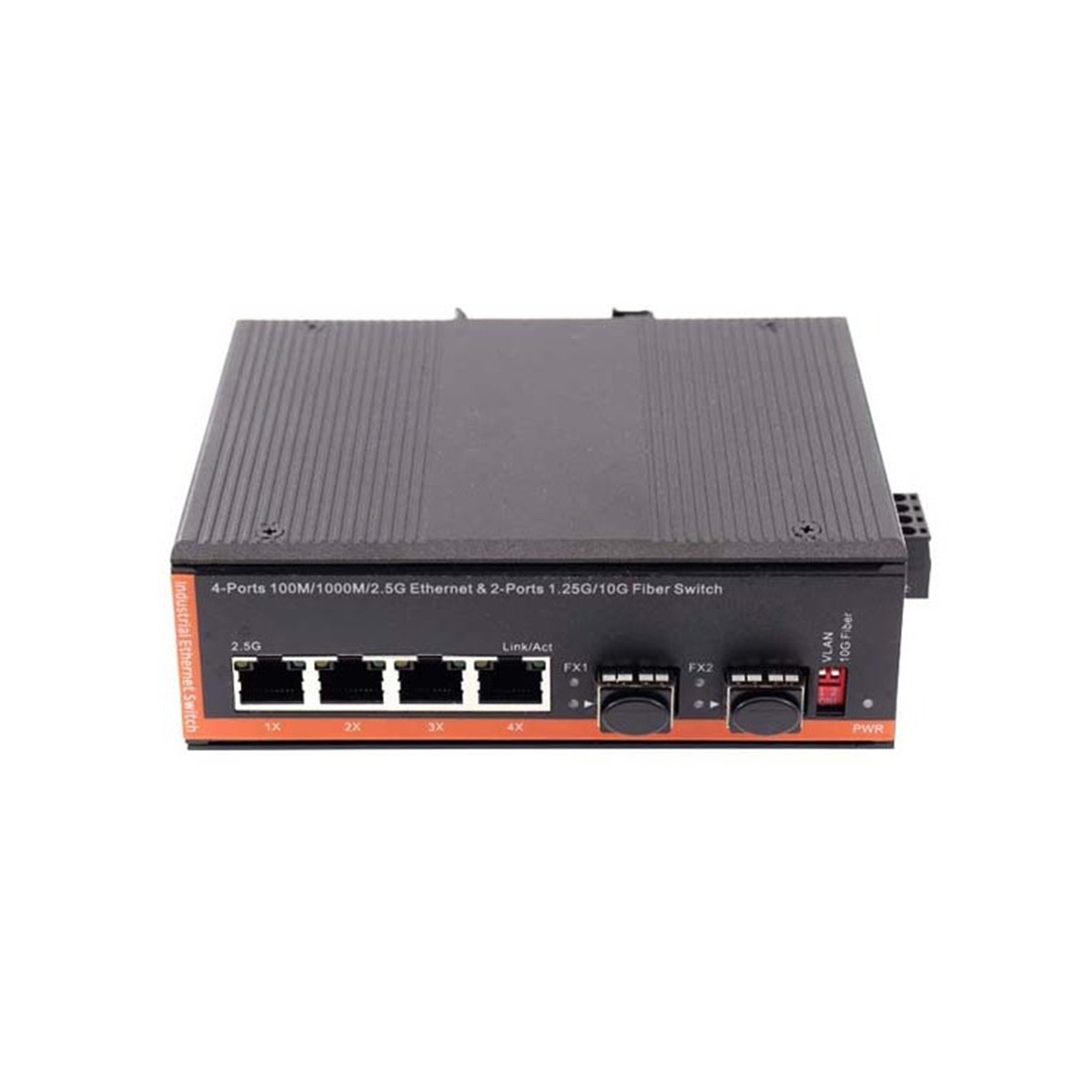

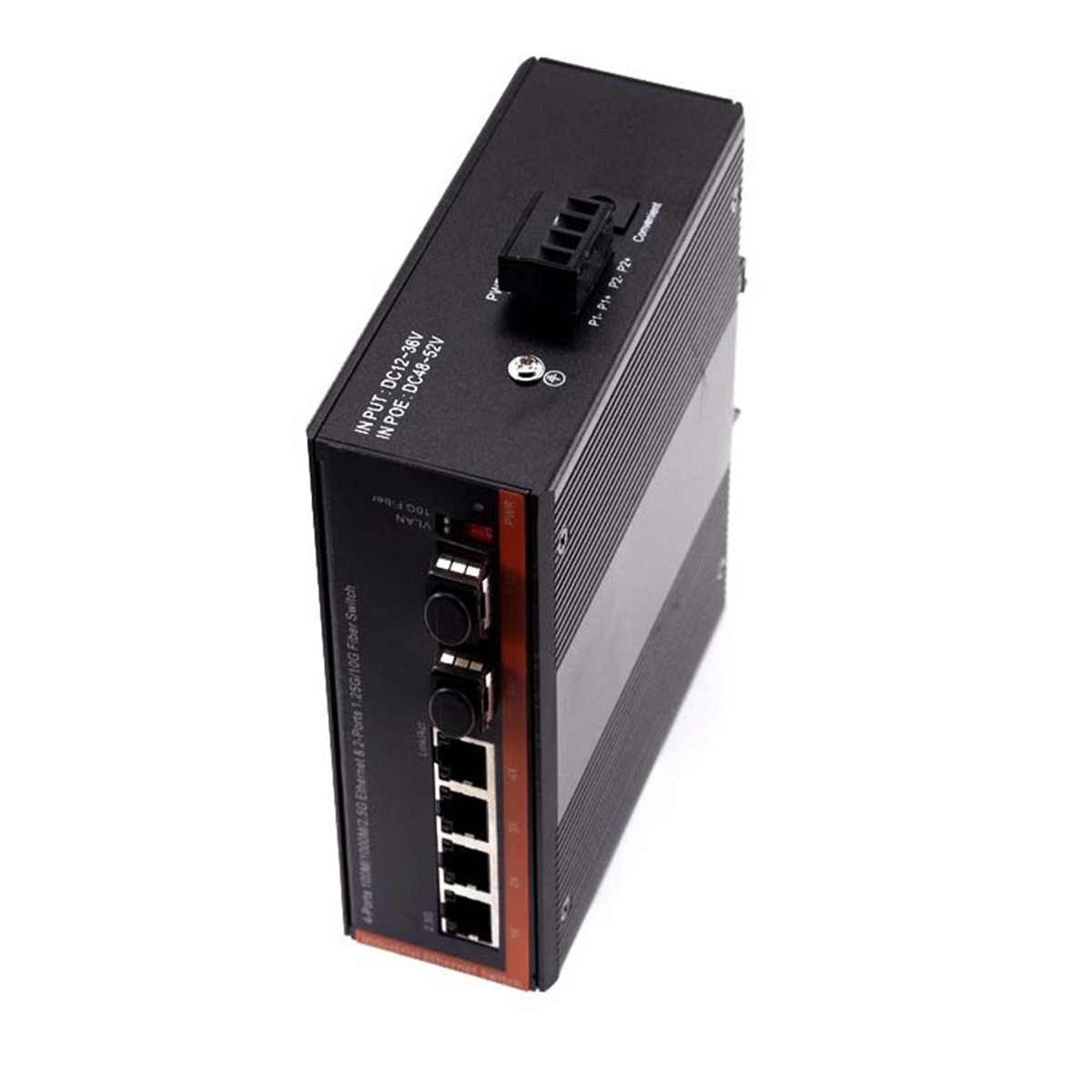

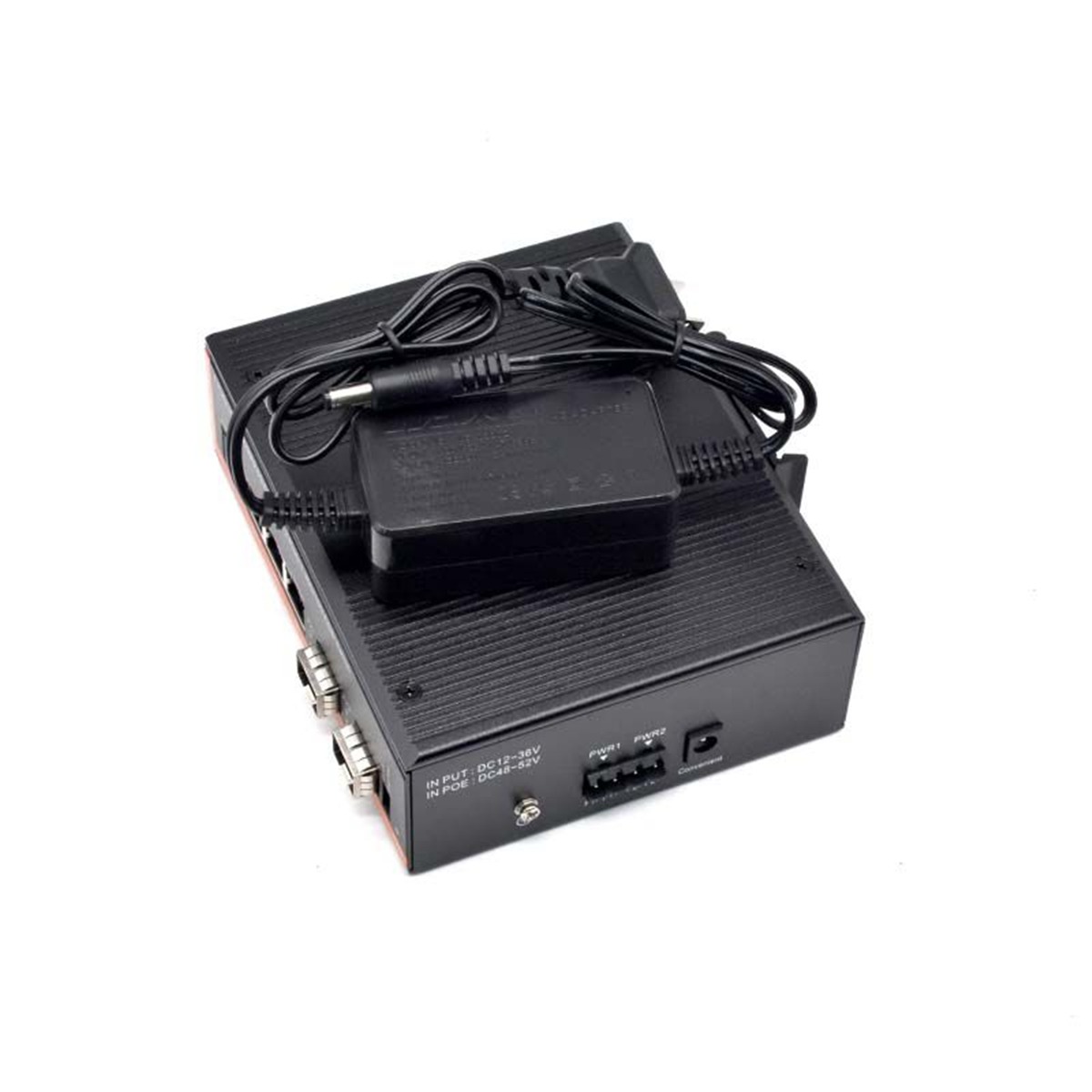

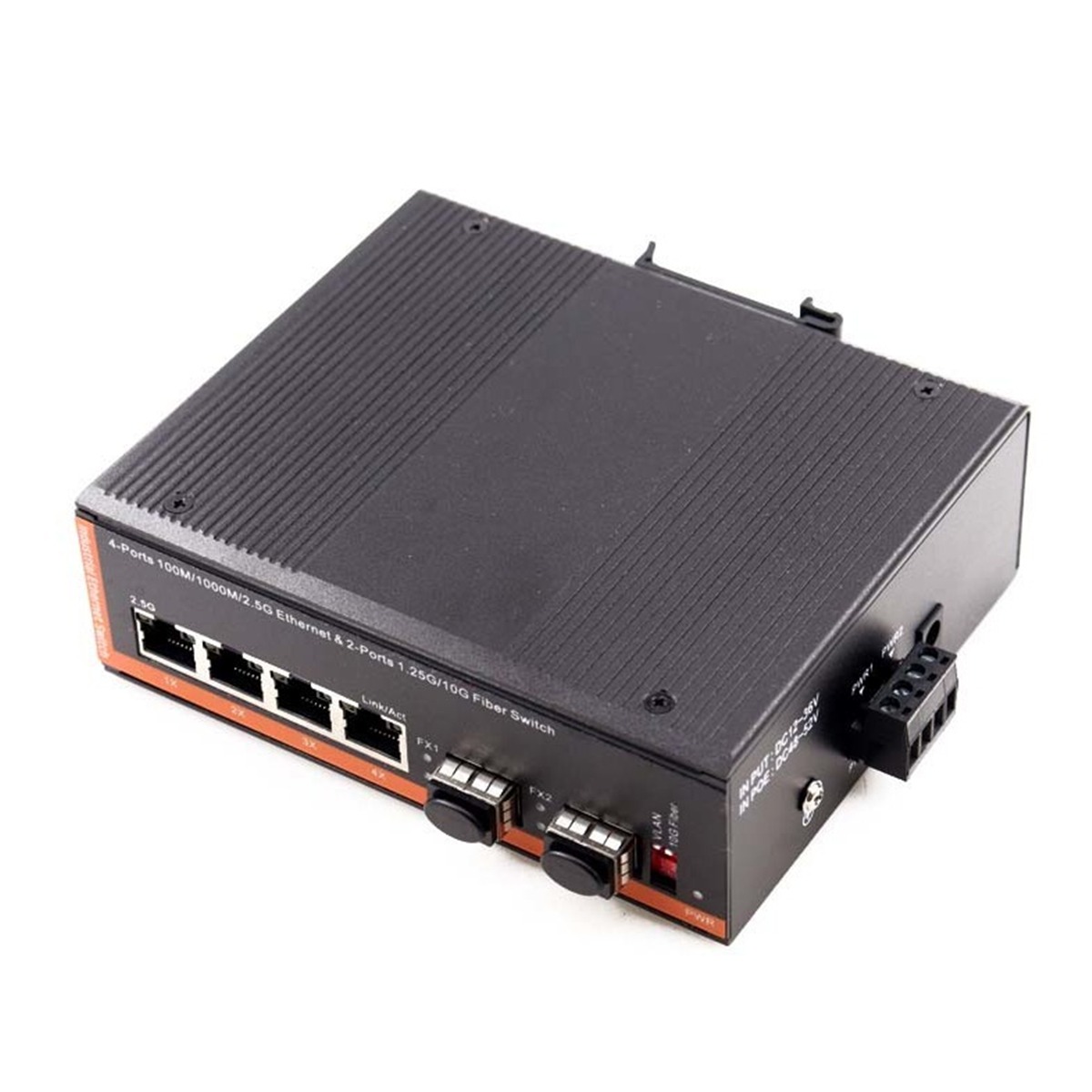

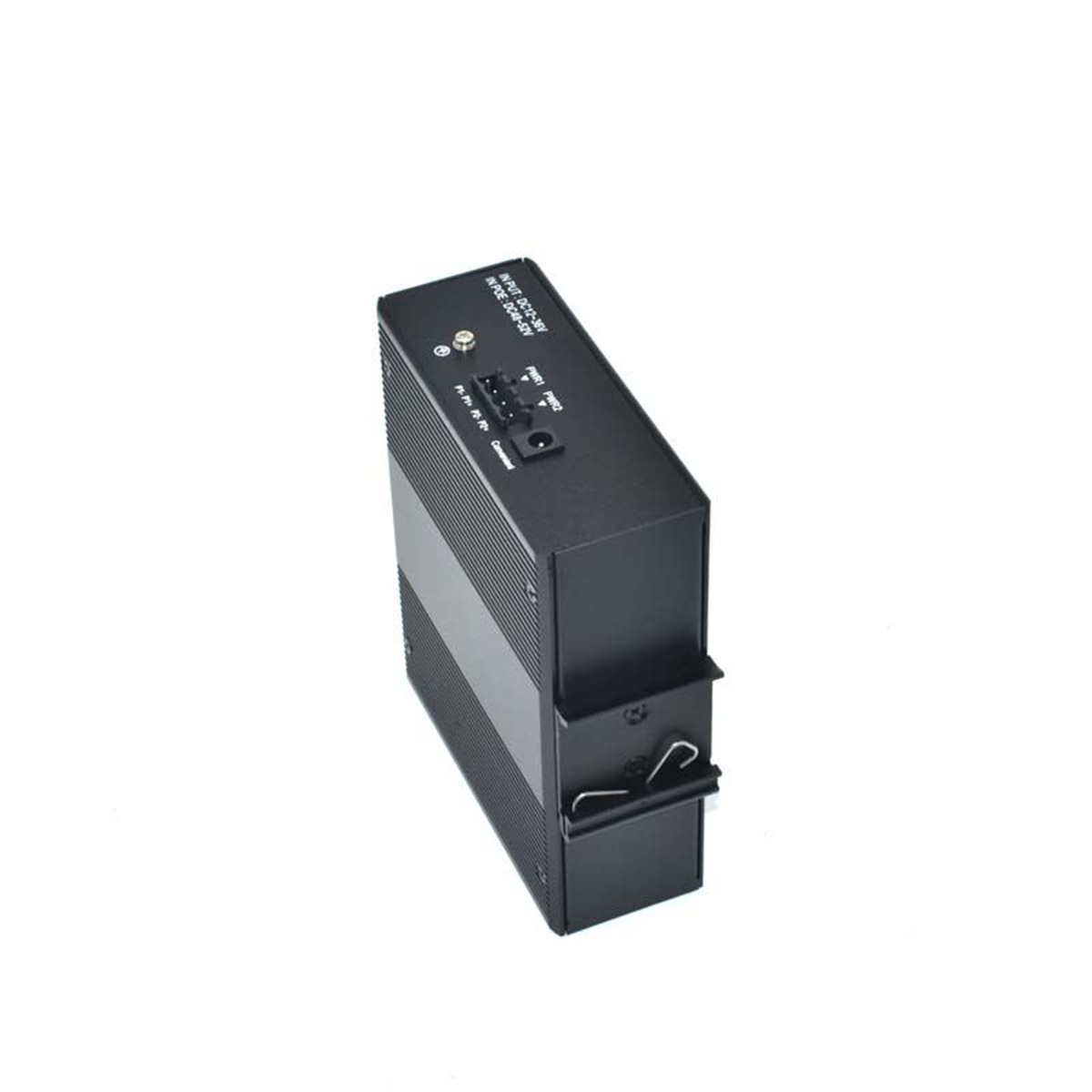

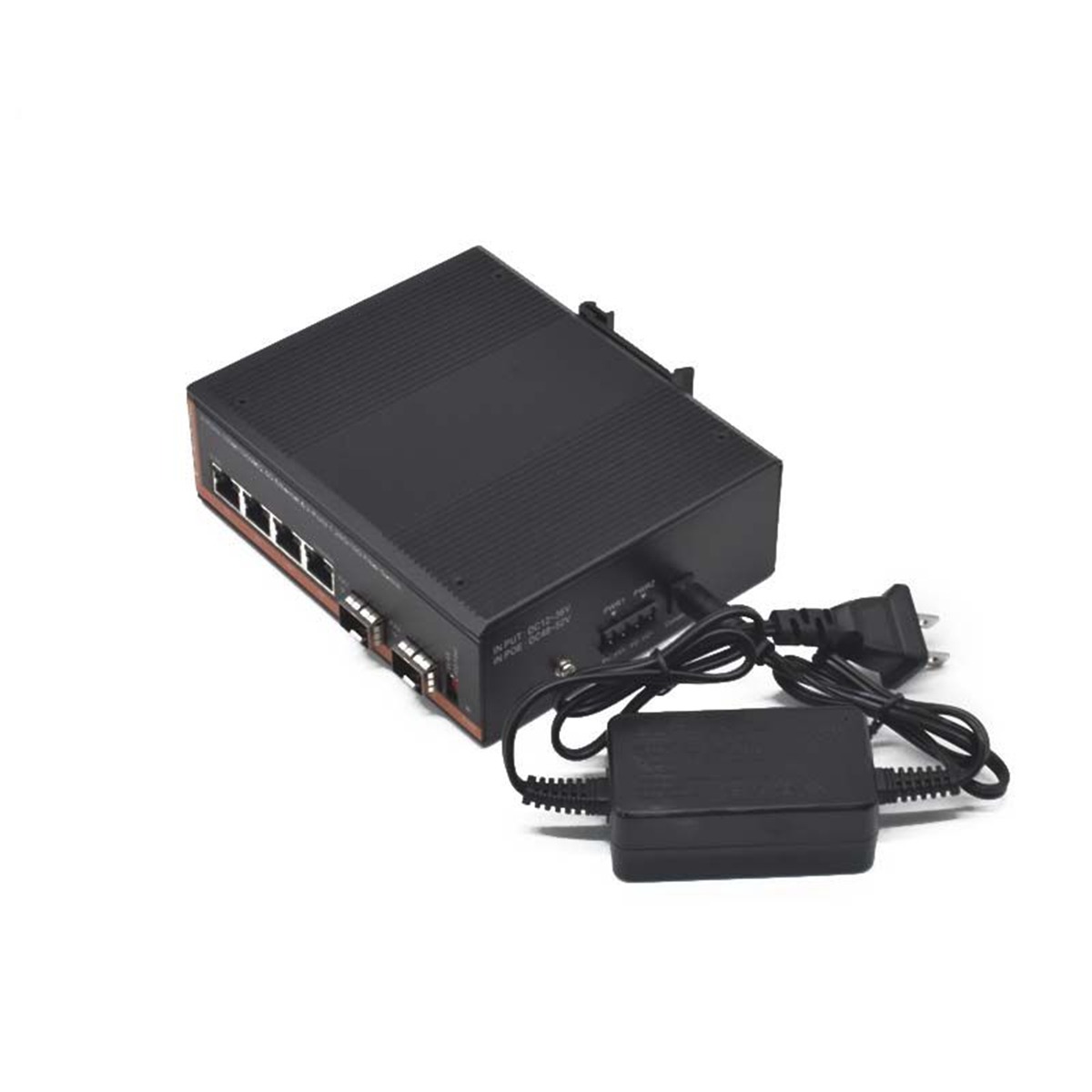

2.5G Industrial Ethernet Switch 4×2.5G 2x10G SFP+
Features
- VLAN switch: ON=1x-4 only communicates with FX1/FX2; OFF=All ports are processing data normally
- 10G Fiber switch: ON=forced setting of 10G, OFF=1.25G/10G adaptive
- Plug and Play
- Supports wide voltage range
- Supports wide temperature range
- Lightning resistance 8KV
- Supports 2 SFP+10G fiber optic ports, up to 120km
- Supports 2 2.5G Ethernet ports, 10/100/1000/2500M adaptive
Metal shell for effective heat dissipation
Specification
| Model | LL-IND-425GE2SFP+ |
| Product Name | Industrial Grade 10 Gigabit 2 Optical 4 Electrical Fiber Optic Transceiver |
| Network protocols | IEEE.802.3, IEEE802.31 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3x, IEEE 802.3z100BASE-X, IEEE802.3z1000BASE-X, IEEE802.3z2500BASE-X, IEEE802.3ab250OBASE-T |
| Ethernet port parameters | 4 * 10/100/1000/2500M BaseT (x) automatic detection, full/half duplex MDI/MDI-X adaptive |
| SFP port parameter | 2 * 10G/1.25 optical port, with a maximum distance of 120KM transmission |
| Forwarding mode | Store and forward (full line speed) |
| Backplane bandwidth | 256Gbps |
| Packet forwarding rate | maximum transmission 35.888Mpps |
| MAC address table | 4K |
| Packet forwarding cache | 8M |
| Forward frame length | 64-15360 Byte |
| Transmission distance | 10BASE-T, Cat3,4,5 UTP (150 meter); 100BASE-TX, Cat5 or later UTP (120 meter); 1000BASE-TX, cat6 or later UTP (100 meter); 2500BASE-TX, cat6 or later UTP (50 meter) |
| Standby power consumption | ≤ 15W; |
| Working voltage | DC 12V-52V |
| Indicator light | The yellow indicator light for the Ethernet port will only light up when the Ethernet port is working at a speed of 2.5G, and will not light up at other speeds; The green indicator light on the Ethernet port will light up at any speed, and it will flash during data exchange; After the optical module is connected normally, the FX1 and FX2 indicator lights will light up, and will start flashing when data exchange occurs; After the device is powered on normally, the PWR will light up. |
| Working temperature/humidity | -40~+85 ° C; 5%~90% RH without condensation |
| Storage temperature/humidity | -40~+75 ° C; 5%~95% RH without condensation |
| Product size | 145mm+125mm48m (length * width t height) |
| Lightning protection | Port lightning protection 8KV 8/20us; |
