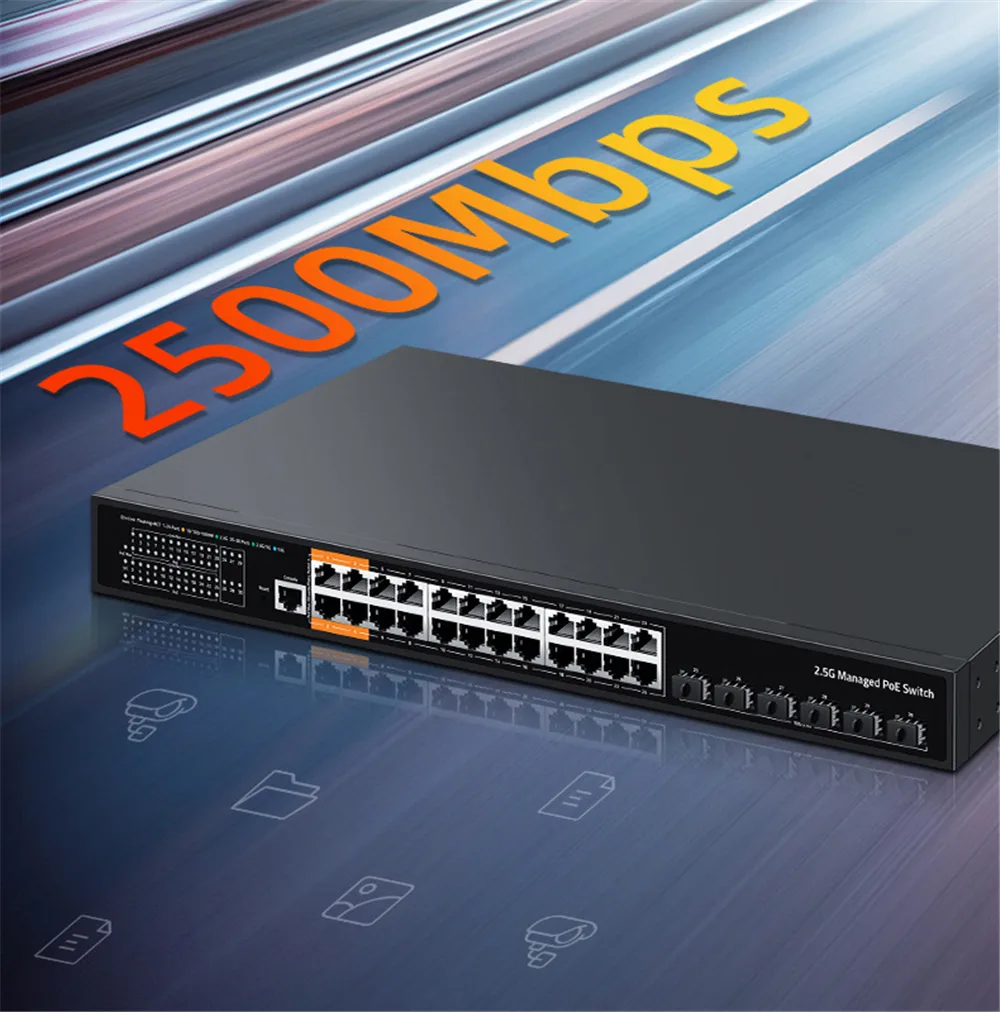

Features
- 2.5G transmission rate，2.5G Ethernet Switch
- Supports 10G SFP+, switch 10gb

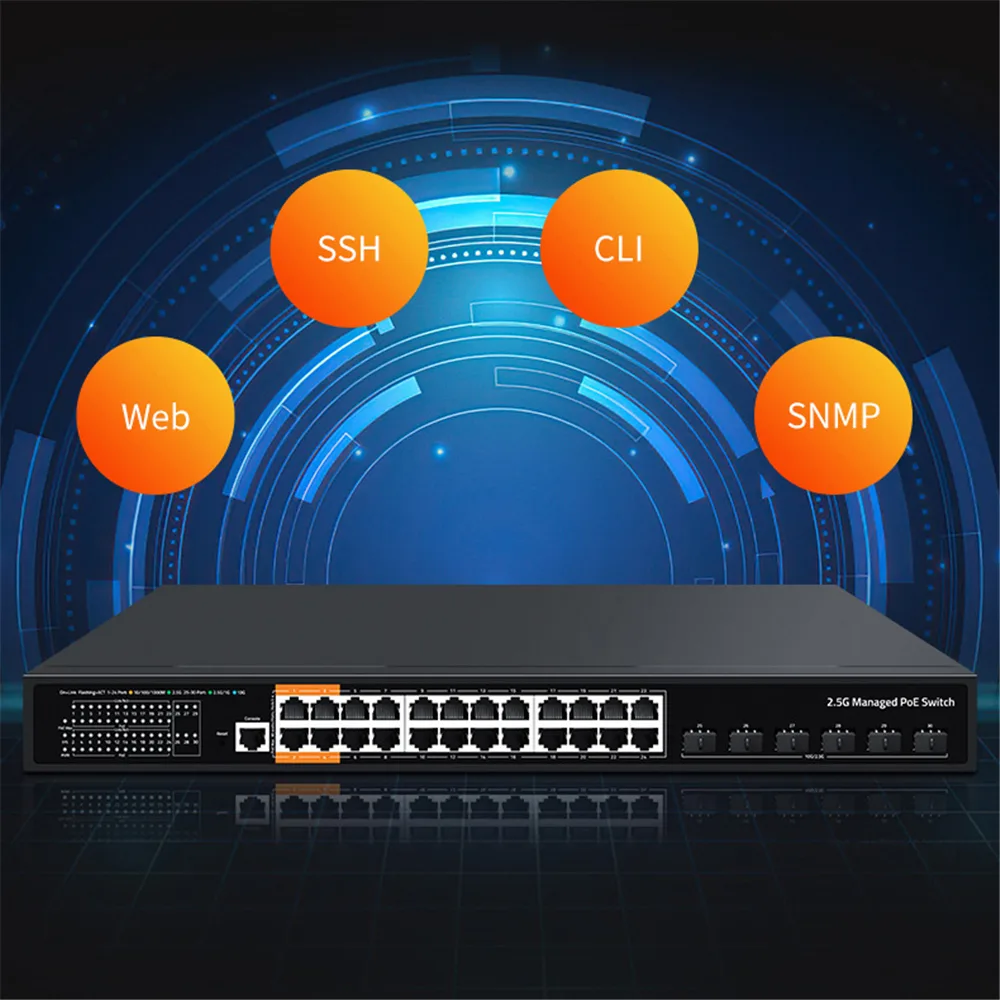

- Supports three-layer network management
- Multiple routing protocols,L3 layers Management Switch
- 16M cache
- 4KV lightning protection
- High and low temperature resistance

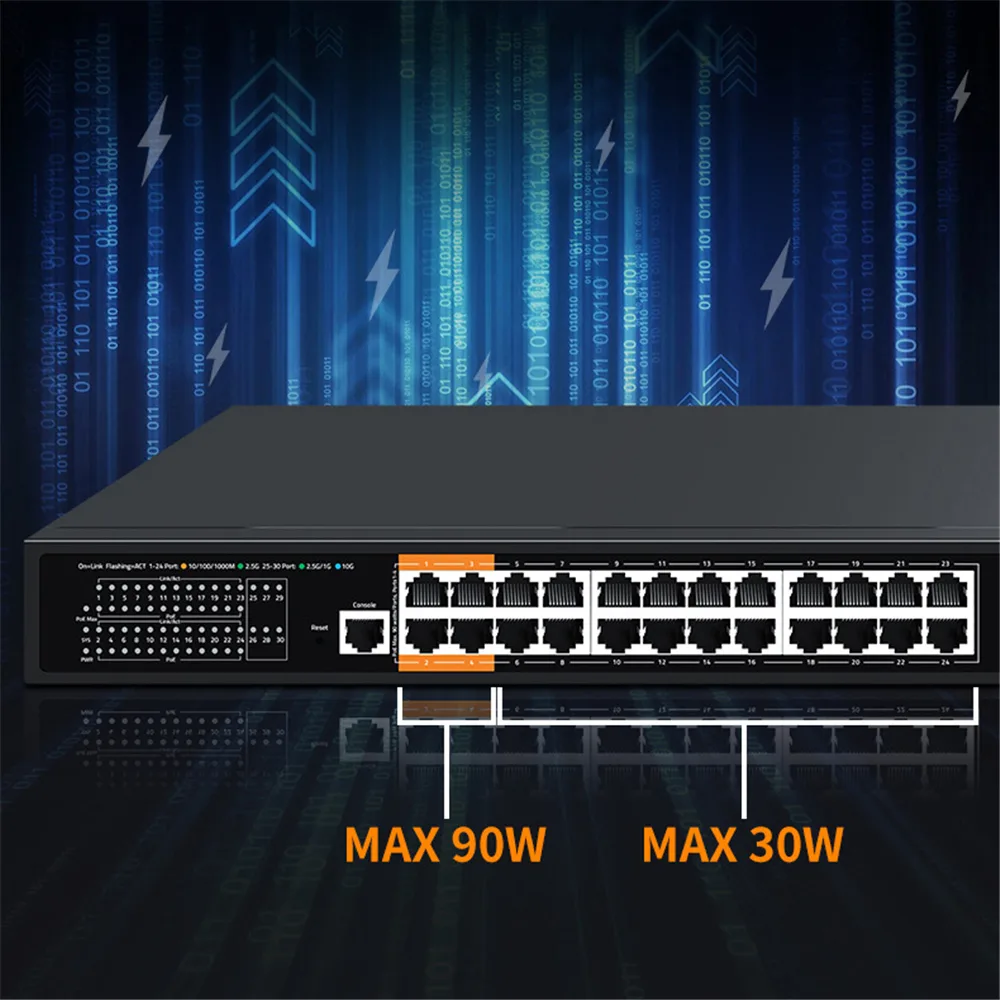

- POE Ethernet Switch 400W PoE power output, 1-4 ports max up to 90W PoE power output，5-9 port max up to 30W PoE power output
Specification

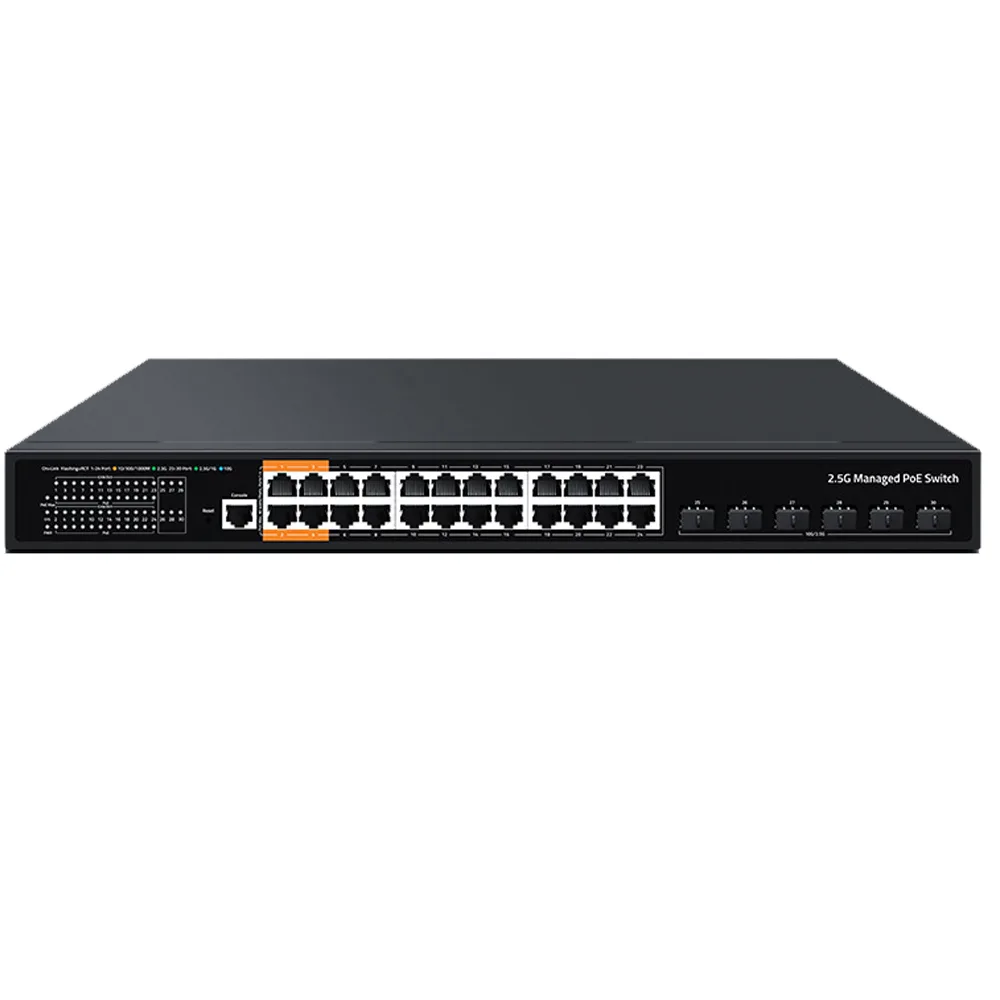

| Model | LL-L3MES-SW-2.5G-24POE-6SFP+ |
| Port | 24 x 100/1000/2500M PoE Ethernet Port 6 x SFP+ Port 1 x Console Port |
| Network protocol | IEEE802.3 IEEE802.3u IEEE 802.3ab IEEE802.3z IEEE 802.3ae IEEE802.3x IEEE 802.3az IEEE 802.3ad IEEE 802.1AB LLDP/LLDP MED IEEE 802.1D Spanning Tree Protocol IEEE 802.1W RSTP IEEE 802.1s MSTP IEEE802.1Q IEEE 802.1p IEEE802.1X |
| Performance | Backplane bandwidth: 240Gbps Packet forwarding rate: 178.56Mpps Memory DDR: 512MByte Flash: 32MByte MAC address table: 32K Package cache: 16Mbit Giant frame: 10K bytes VLANs: VLAN range 1-4094, maximum active VLAN is 4K |
| Power voltage | Working voltage: AC100-240V, 50/60Hz Power supply: DC54 V7.69A , 12V5A POE output: maximum 400W |

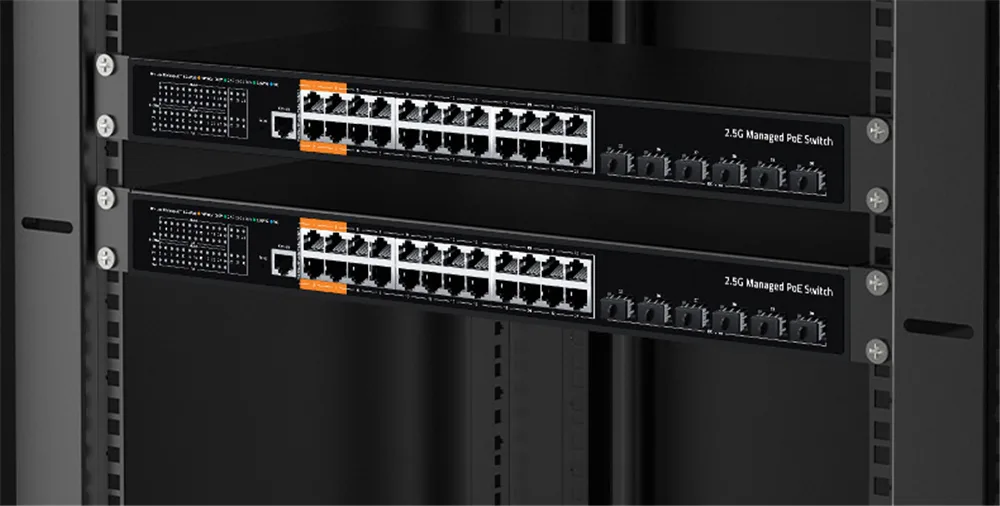

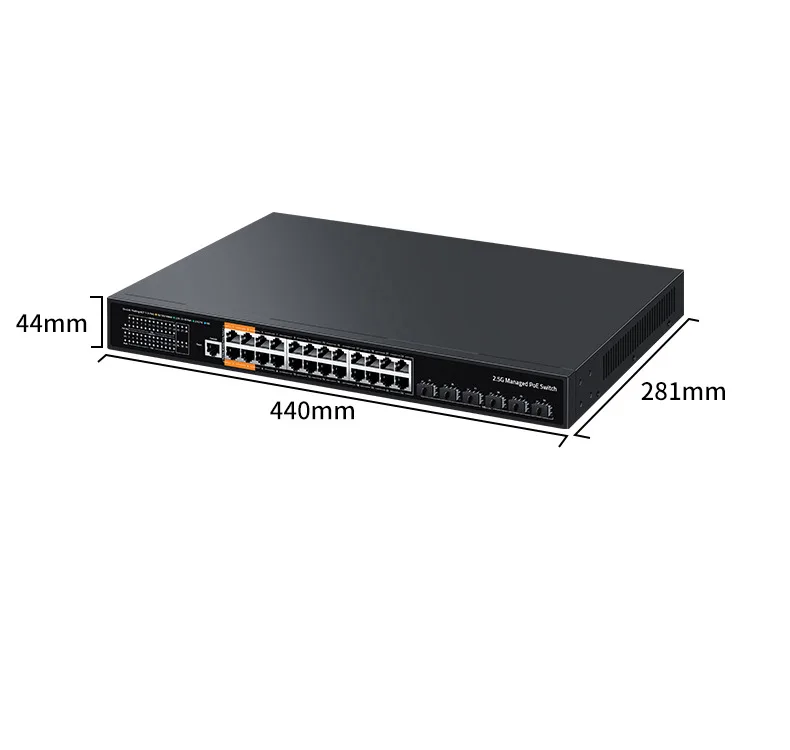

| Physical structure | Installation: Standard 1U rack installation, desktop installation Product size (LXWXH): 440 x 281 x 44MM Packaging size (LXWXH): 500 x 365 x 85MM |
| L3 Function | Routing, RIP, OSPF, IPV4, IPV6 |
| L2 Function | Port configuration, path aggregation, burst control, port mirroring, port security, port isolation, port speed limiting, road testing, VLAN, MAC address, generation, LLDP, playback, QOS |
| Indicator light: | PWR (power light), SYS (system light), PoE power light Link/ACT (data light), PoE (PoE indicator light) SFP port light |
| Working environment | Working temperature: -10~50 ℃ Storage temperature: -40~70 ℃ Working humidity: 10%~90%, non condensing Storage humidity: 5%~90%, no condensation |
