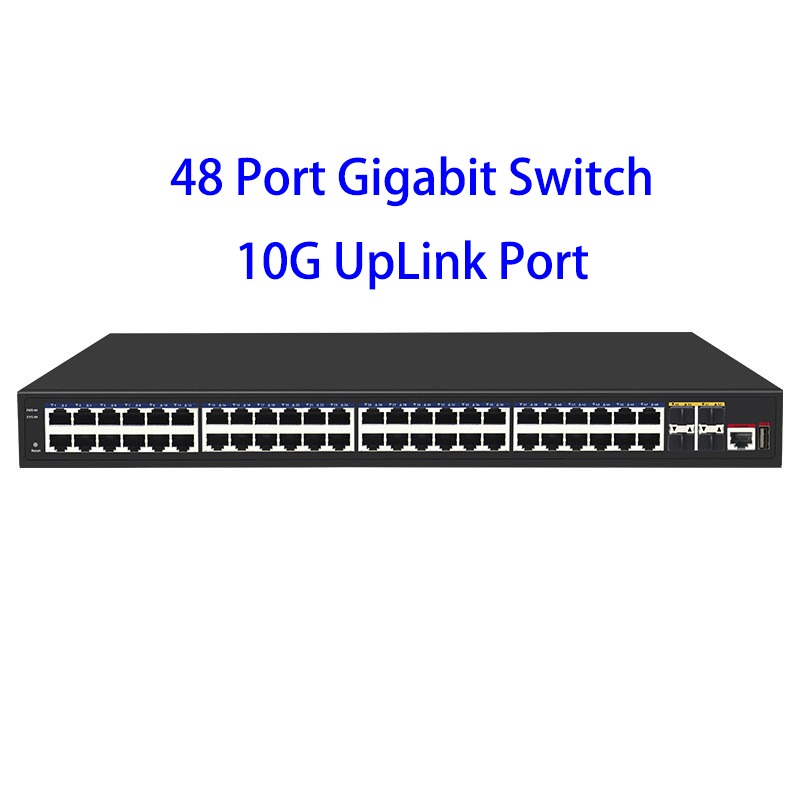

48 Port Gigabit Switch 4 Fiber Port WEB Management 10G Up-line Optical Port VLAN Ring Network L3, Support DHCP IGMP Snooping
If you’re looking for a reliable and efficient way to manage your network connections, this 48 Port Gigabit Switch is the perfect solution. With 48 fully managed Gigabit Ethernet ports and 4 Fiber SFP ports, you’ll have plenty of options for connecting your devices and expanding your network.
One of the key features of this switch is its advanced WEB Management system, which lets you easily configure and monitor your network settings from a web-based interface. You’ll be able to set up VLANs, QoS, L3 routing, IGMP snooping, and much more, all from a single convenient location.
In addition, this switch also supports a 10G Up-line Optical Port, which can provide lightning-fast connectivity for your high-bandwidth devices. And thanks to its flexible VLAN Ring Network topology, you’ll be able to create a more secure and reliable network that’s resistant to single points of failure.
Overall, this 48 Port Gigabit Switch is an excellent choice for businesses, schools, or other organizations that need a powerful and feature-rich networking solution. So if you’re ready to take your network to the next level, be sure to get your hands on one of these today!
1. VLAN supports dividing multiple networks
2. Double lightning protection for network port and power port
3. WEB management
4. L3, support DHCPQoSACLSNMP V1 V2 V3IGMP Snooping V1 V2
Port definitionÂ
- 48 Gigabit ports + 4 10 Gigabit SFP + 1 management port + 1 SUB port
Network protocol
- IEEE 802.3 IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3Z IEEE 802.3ae IEEE 802.3az IEEE 802.3ad
- IEEE 802.3x IEEE 802.1ab IEEE 802.1p IEEE 802.1q IEEE 802.1x IEEE 802.1d IEEE 802.1s IEEE 802.1w
Network transmission medium
- 10Base-T: Cat3, 4, 5 or above UTP/STP (≤100m) 100Base-Tx: Cat5 or above UTP/STP (≤100m)
- 1000Base-TX: Cat5 category or above UTP/STP (≤100m) multimode fiber: 50/125, 62.5/125, 100/140um
- Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um
Indicator light
- PWR (power indicator) SYS (system light)
- Link/ACT (link light/data light)
working environment
- Working temperature: -10~50°C Storage temperature: -40~70°C
performance
- Backplane bandwidth: 336Gbps
- Packet forwarding rate: 131Mpps
- Packet buffer: 16Mbit
structure size
- Product size: 440*280*44mm
- Packing size: 500*350*90mm
- Product net weight: 3.9KG Product gross weight: 4.6KG
- Carton size: 600*495*435mm
Packing information
- Packing quantity: 5 sets Packing weight: 24KG
safety certificateÂ
- CE, FCC, RoHS
