Inch CATV Passive Receiver Optical RF head

USD $9.99 – USD $49.99

2 reviews
SKU: N/D Category: Tags: , , ,

CATV Passive Receiver is a home-based optical receiver which caters for the ultimate development goal of the optical fiber
access and is suitable for the FTTH network optical fiber user access terminal to realize the analog or digital signal access to
the home.

Guaranteed Safe Checkout

Descripciรณn

Features

  1. Inch Diameter: 9.2-9.4mm
  2. High quality plastic case
  3. Without power supply and consumption

Specification

Name Unit Technical Parameters Note
Model LL-CATV-Node
Received optical wavelength nm 1100-1600 or single wavelength 1550
Received optical power range dBn 0~16dB
Operating bandwidth MHZ 40-860MHz/1000MHz
RF flatness dB ยฑ0.75
RF impedance Q 75
RF Output Connector Male, Female Inch
Output Level dBuv 69dBuv (@0dBm receive) MER: 39, BER: 1.0E-9
58dBuv (@-6dBm receive) HER: 38, BER; 1.0E-9
49dBuv (@-10dBm receive) MER:31 BER: 1.0E-7
45dBuv (@-12dBm receive) MGR:27, BER: 1.0E-7		 Test Conditions: Optical Input Level: 80dBuv, MER:38, BER: 1.0E-9
RF Output Reflection Loss dB >=16 ๏ผˆ10-550MHZ๏ผ‰ . >=14 ๏ผˆ 550-1000MHZ๏ผ‰
Input Optical Reflection Loss dB >=45
Optical Connector Type SC/APC
C/N dB >=51 Test conditions are in accordance with GT/T184-2002.
C/CTB Dbc >=65
C/CSO dB >=62
Sensitivity dB -17
Operating Temperature Range โ„ƒ -20 – +60
Maximum Operating Relative Humidity % Maximum 95% non-condensing
Fiber Optic Interface SC/APC SC/UPC FC/APC
Operating Relative Humidity % Max. 10% – 95% non-condensing
Dimension mm 58mm*24mm*13mm

Additional information
Weight 0.25 kg
Dimensions 10 × 10 × 10 cm
Insert port

SC APC

,

SC UPC
Working wavelength

1100-1600

,

1550
Head type

Female

,

Male
Quantity

10pcs

,

1pcs

,

20pcs

,

2pcs

,

4pcs
Reviews (2)

2 reviews for Inch CATV Passive Receiver Optical RF head

5.0
Based on 2 reviews
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

  1. Fritz Filippi –

    Everything came right

    0
    0
    (0) (0)

  2. Thibault Silvestre –

    Everything came right

    0
    0
    (0) (0)
Add a review
Q & A

Q & A

Ask a question
There are no questions yet
Shopping Services

You May Also like

Quick view
Add to wishlist
Add to cart

Fiber Optic Loopback, SC UPC, MM

USD $9.99
-25%
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

Optical Power Meter +Red Laser Fiber RJ45 Tester Light Rangefinder LL-OPM-VFL-Li-Y8

,
USD $24.99 – USD $52.99
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

2.5G Industrial Ethernet Switch 4×2.5G 2x10G SFP+

USD $84.00
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

25G SFP28 MMF Dual LC Optical Module 300m SFP28-25G-SR

USD $34.99
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

Reverse POE Switch 2SC 2RJ45 100M Fiber Optic Media Converter Ethernetย  Switch PCBA Board Industrial Grade

USD $14.99 – USD $18.99
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

Fiber Cleaning Box

USD $8.88 – USD $15.99
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

MPO Fiber Cable, 12 core, Female to Female, OM4 MM

USD $31.99 – USD $102.99
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

SC UPC Flange Single Mode Single Core Metal Adapter 6pcs

USD $23.99
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

INS2UM2GF4GT,6-port industrial Ethernet switch, with 2 Gigabit fiber port and 4 Gigabit copper ports

USD $61.00
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

E2000 Flange Coupler SCAPC/UPC 5pcs

USD $24.99

    Related Products

    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    1GE CATV ONU XPON GPON/EPON ONU 1GE+CATV+SCAPC

    ,
    USD $39.99
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    SC adapter 0dB SC/UPC Male -SC/APC Female Optical Fiber Adapter Converter

    USD $9.99
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    SC APC Flange Single Mode Single Core Metal Adapter 6pcs

    USD $23.99
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    MPO to SC APC 12 core, SM

    USD $49.99 – USD $95.99
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    PLC Splitter 1×16 SC APC / UPC

    USD $12.99 – USD $139.99
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    SC APC Optical Fiber FTTH Connector

    USD $8.88 – USD $34.99
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    1×64 SC APC PLC Splitter

    USD $55.00
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    MINI AGC FTTH Optical Receiver

    USD $18.88
    Tags: , ,
    -41%
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

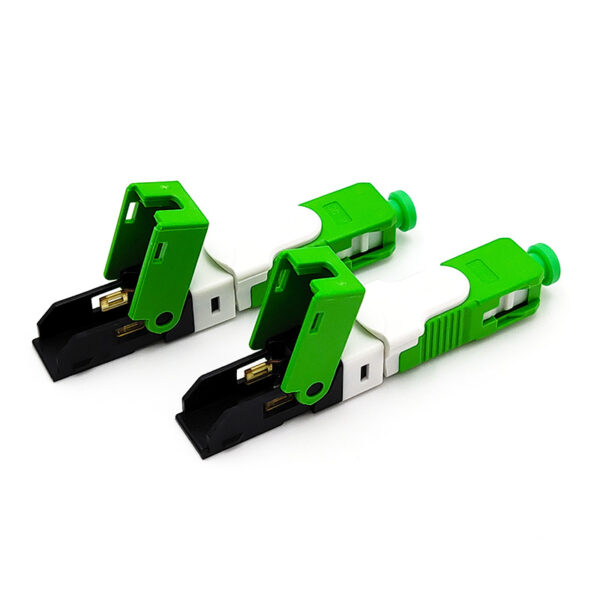

    Fiber Quick Connector SC APC
