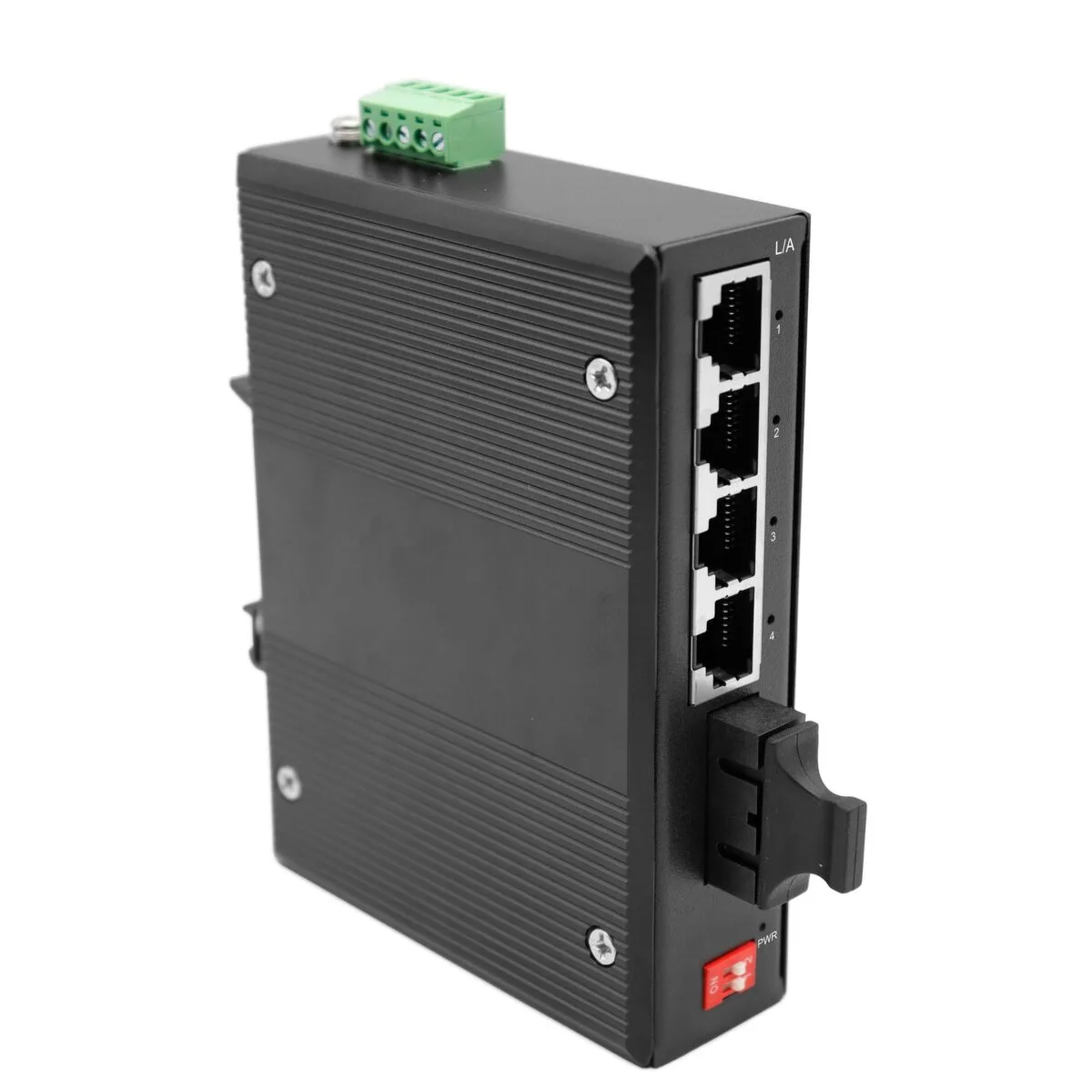

INS2UM1F4T,5-port industrial Ethernet switch, with 1 100M fiber port and 4 100M copper port

USD $55.00

SKU: INS2UM1F4T Category: Tags: ,

10/100 adaptive RJ45 port
Maximum transmission distance of 120km for optical ports
All ports have wire-speed forwarding capability
Supports Auto MDI/MDIX port rollover function
Plug and play, no configuration required
*Provides two-step dipswitch function (storm suppression and vlan port isolation)
*EMC: 15kv air discharge, 8kv contact discharge, 6kv port lightning protection, 4kv power lightning protection
*IP40 protection level, industrial grade standard

Guaranteed Safe Checkout

Description

Specification

Model Num INS2UM1F4T
Brand LuLeey
Product Name INS2UM1F4T,5-port industrial Ethernet switch, with 1 100M fiber port and 4 100M copper port

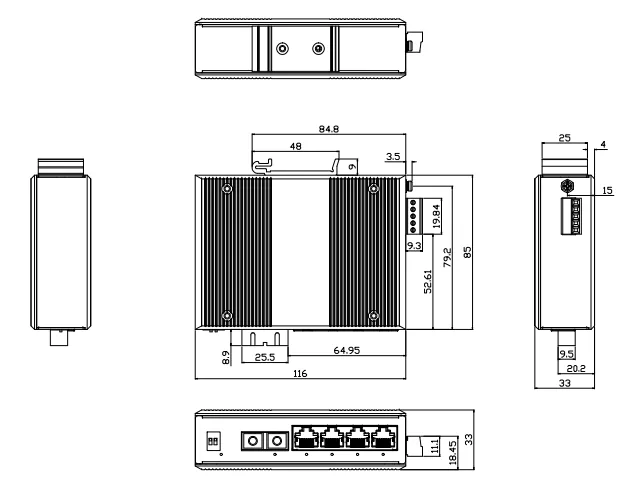

Size 116mm*85mm*33mm
Back plane bandwidth 1 Gbps
Installation method DIN rail mounting
POE Not Support
web management no
RJ45 Ports 10/100M
SFP Ports SFP 100M
IP Rating IP40
Power Input Dual Power Supply
Power DC9-48V
PoE Budget/Singleย  Port ใ€€
Shell Material Aluminum Shell
Working Temperature ย -40~85หšC
Storage Temperature ย -40~85หšC
LULEEY INS2UM1F4T DATASHEET

Features

Industrial switches engineered for extremesย | LuLeey

Industrial switches pass 16 industrial-grade test procedures to meet EMC Level 4 requirements.

Temperature Protection

-40โ„ƒ๏ฝž85โ„ƒ working environment

Industrial Grade Chips

All ports have wire-speed forwarding capability
Supports Auto MDI/MDIX (port rollover) function

EMC LEVEL 4

15kv air discharge, 8kv contact discharge, 6kv port lightning protection, 4kv power supply lightning protection

IP40

Adopting industrial grade IP40 protection level, stable and worry-free operation, safe and reliable

Power Supply Protection

Voltage range DC 9~48V, dual power supply redundancy

Port Isolation Switch

Provides two-position dip switch functionality (storm suppression and vlan port isolation)

DIN
Additional information
Weight 0.45 kg
Dimensions 10 × 10 × 10 cm
Industrial Switch Fiber Port

SC 100M
Industrial Switch RJ45 Port

10/100M
