MPO fiber optic patch cords are used in building-to-building trunk cabling systems, fiber optic communication systems, local area network cabling and optical active equipment. Telecommunication systems, optical link interconnection in local area cabling optical active equipment, communication systems Fiber optic cabling in telecommunication base stations, park rooms, commercial building rooms, commercial building rooms, cable TV networks, telecommunication networks, local area networks (ILANs), wide area networks (WANs), and fiber-to-the-desktop (FTTX) optical signals.
Features
- MPO to SC UPC 12 core is highly compatible and can be used in all kinds of fiber-optic local area networks, fiber-optic communication systems, instruments and meters, network CATV.
- Low insertion loss ensures stable and high-speed transmission.
- High-quality fiber core, stable transmission, high speed and stable transmission up to 40G.
- LSZH low smoke and halogen-free flame retardant, strong tensile strength and durability.
Specification
| Brand Name | LuLeey |
| Origin | Mainland China |

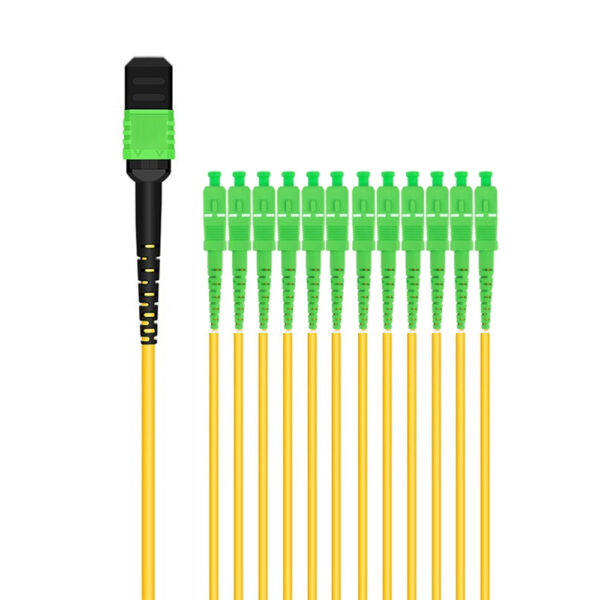

| Product Name | MPO to SC UPC 12 core |
| connector type MPO | Â MPO or MTP |
| Connector | Â FC, LC, SC, ST (optional) |
| Fiber Type | Â Single Mode |
| Operating wavelength range | Â above 1310nm |
| Test wavelength | Â 1310nm 1550nm |
| Insertion Loss MPO |  Typical ≤ 0.20dB, Maximum ≤ 0.70dB |
| Connector |  Typical ≤ 0.20dB, Maximum ≤ 0.30dB |
| Return loss |  APC ≥ 60dB, UPC ≥ 50dB |
| Test MPO insertion and removal times |  ≥500 times |
| Test connector plugging and unplugging times |  ≥1000 times |
| Tensile strength |  ≥120N (excluding 0.9mm fiber optic cable) |
| Operating Temperature |  -20~+70°C |
| Storage temperature |  -20~+70°C |
