Features

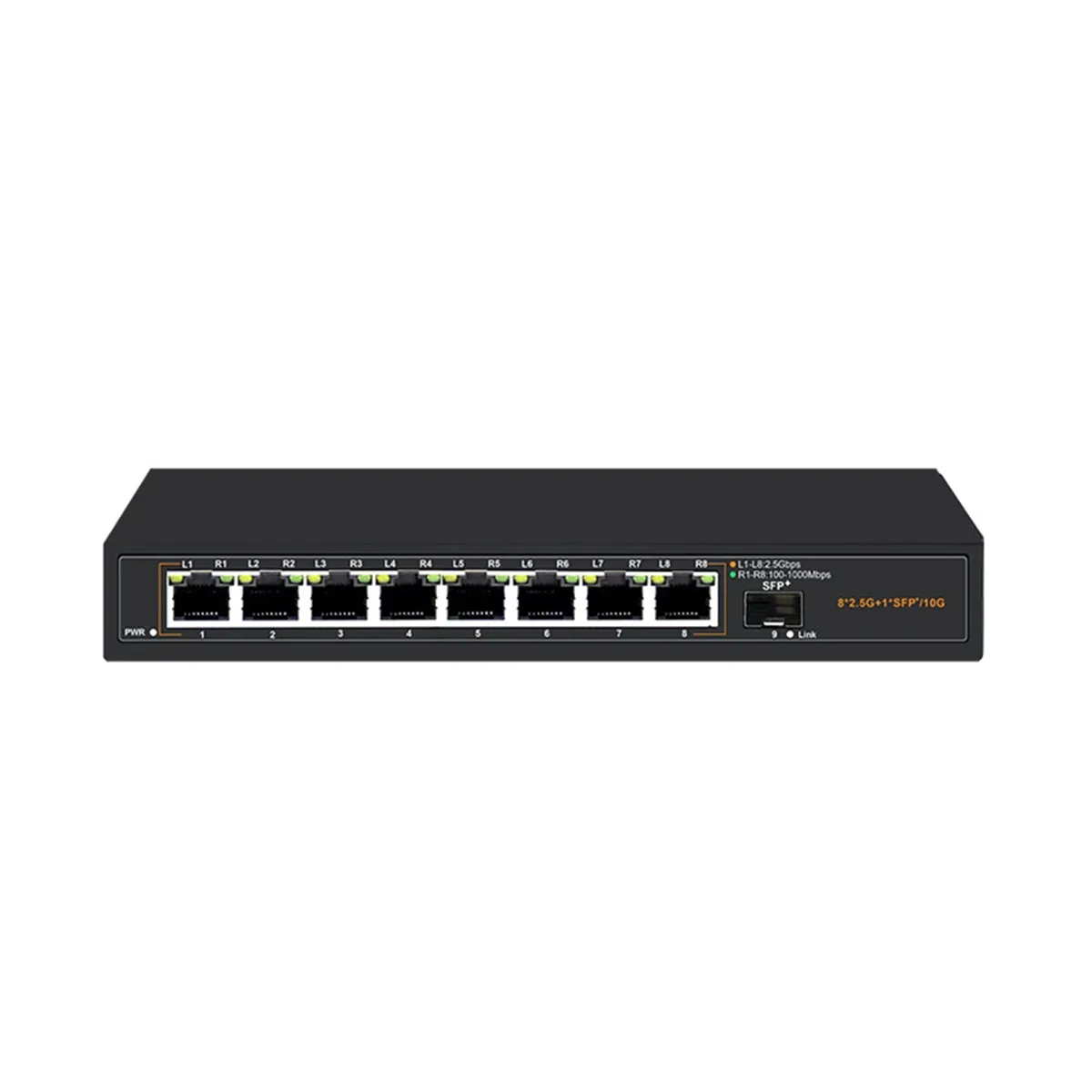

- Port speed: 8×2.5Gbps ports support POE, 1x10G SFP+ uplink port
- Machine power consumption:≤ 120W DC52V 2.3A, single port ≤ 30W
- Ethernet high-speed port: 8 x 10M/100M/1000M/2.5G adaptive port
- Support 10g epon stick/XGS-PON
- Optional POE version: supports the 802.3AF/AT standard protocol, with a maximum single port power of 30W, which helps deploy security networks
- High speed forwarding: Internal integration of high capacity cache effectively reduces data forwarding latency, and all ports can achieve non blocking line speed forwarding
- Efficient heat dissipation: metal material, double sided air vents
- Plug and Play: Depending on the type of network cable inserted, MDI/MDIX flipping can be automatically performed and port efficiency can be automatically negotiated without any configuration.
4KT lightning protection
1. The product shell is made of high-quality metal sheets and has high-strength lightning protection effect.
2. It can be used even when used outdoors in severe weather.

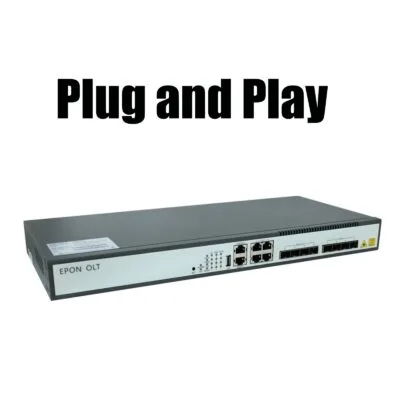

Plug and play, no setup required
1. No settings required, supports hot swapping
2. Connect the optical fiber and network cable to use
Wide range of applications
1.Hospital
2.Enterprise
3. School
4. Supermarket
5. Family
Specification
| Model | LL-ESNM-825GE1SFP+POE |
| Power input | Â AC 100-240V |
| Packet forwarding rate | Â 44.64Mbps |
| MAC address | Â 4K |
| Backplane bandwidth | Â 60Gbps |
| Forward mode | Â store and forward |
| Network protocol | Â IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3bz |
| Network media requirements | Â 10/100/1000BASE-TX,Cat 6 and above unshielded twisted pair |
| Network cable transmission distance | Â less than or equal to 100 meters |
| Network port functions | Â fast forwarding, MAC automatic learning and aging, IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control |
| Working temperature |  -10℃~55℃ |
| Storage temperature |  -40℃~85℃ |
| Size | Â 198mm*74mm*29mm(8 port version) |
| POE | Â Total 120W |
