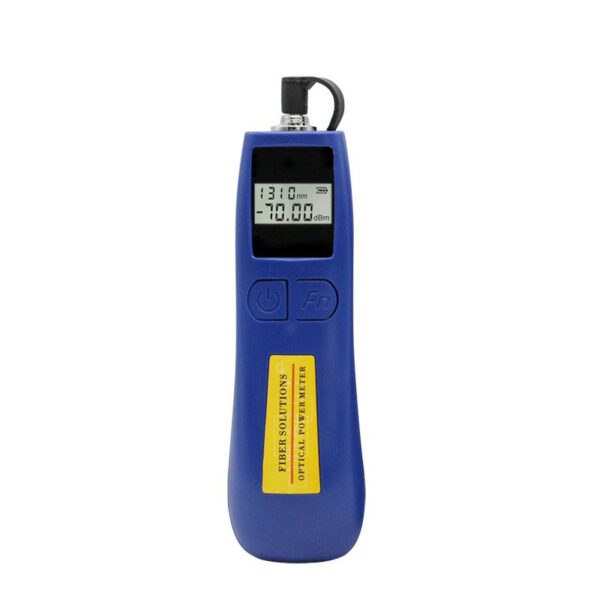

Optical Power Meter 6 Wavelengths OPM LL-OPM-NoLi
USD $16.99 – USD $17.99
-44%

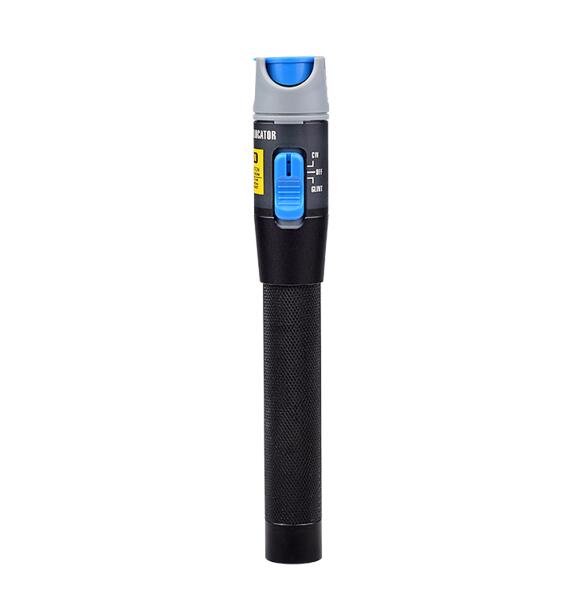

Visual Fault Locator 1mw/10mw/20mw/30mw/50mw VFL LASER PEN LL-VFL-NoLi
USD $12.88 – USD $16.88
- 【Accurate Identification】This visual fault locator can easily and accurately detect and locate fiber optic breaks, poor connections, bending or cracking. It can operate either in CW or Pulsed mode. VFL will emit a 650nm red light for fiber tracing and locating, breaks or faults will refract the light in the fiber.
- 【Excellent Functions】The fiber tester multiple functions include constant output power, lower battery warning, long battery life, and long-distance detection. Fiber routing and continuity checking efficiently, creating a bright glow around the faulty area.
- 【Wide Application】Universal 2.5mm connector designed for ST, SC, FC interferes both in the circle and square shape of different fiber optic cables, test for both single-mode and multi-mode cables. Apply To: Integrated wiring systems and Fiber Optic engineering; CATV Engineering optic network Maintenance; Optical Telecommunications; Optical Measurement drive engineering; Optical device production and research.
- 【Detection Distance】This visual fault locator has a strong light source output power of 30mW, constant output power the strong red light goes 20-30 kilometers far in fiber optic cable, high effective power circuits provide stable power, continuous-wave and pulsed mode.
- 【Practical Design】Small size and lightweight, pen-type design with pouch make it portable, easy to check fiber faults with visual fault locator, design with a stainless steel head and aluminum body to prevent crash and dust, the case ground design prevents ESD damage efficiently.
Guaranteed Safe Checkout
Description
Description
Visual Fault Locator,For transportation safety, please purchase batteries(AAA) by yourself, thank you for your understanding
Features
- Compact, ergonomic design for ultimate portability
- Easily penetrate through a 30km fiber

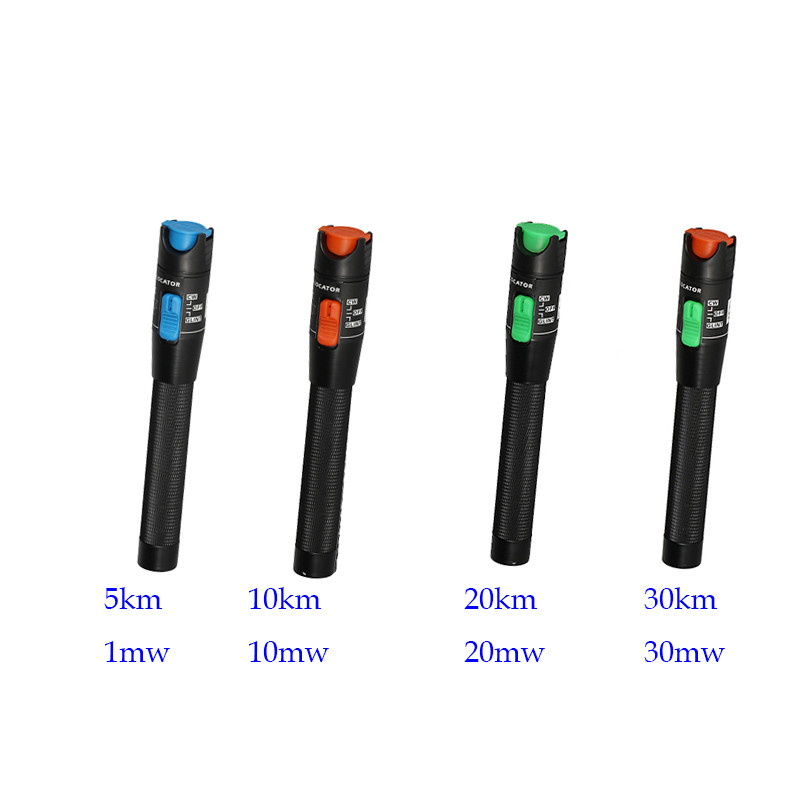

- 1/10/20/30/50mW output power, 650nm range wavelength
- Quickly illuminate fiber breaks, damaged connectors on patch cords
- Pulsed and Continuous Steady operation modes
- Rugged aluminum construction
- Universal 2.5mm adapter for easy connection to SC, ST, FC, LC connectors (LC interface need an additional adapter)
- Excellent Head with high fiber concentration and little divergence
- High-quality chip ensuring years of trouble-free operation
- Dust Cap prevents the fiber connector from pollution
- Replaceable Ceramic Sleeve extends the service life
- The hanging rope makes it easy to hang up
- Carrying case for storage
Specification
| Brand | LuLeey |
| Product Name | Visual Fault Locator 1mw/10mw/20mw/30mw/50mw VFL LASER PEN |
| Dimensions | 170x24mm(6.7×0.9 inch) |
| Material | Aluminum Alloy |
| Wavelength | 650nm±10nm |
| Adapter | 2.5 mm universal SC/ST/FC |
| Switch | On/off, continuous/flashing |
| Battery type | 2 x AAA |
| Operating temperature | 10-60°C |
| Storage temperature | -40-85°C |
| Output power | 1/10/20/30/50mW |
Additional information
Additional information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 10 × 10 × 1 cm |
| size |
1mW ,10mW ,20mW ,30mW |
