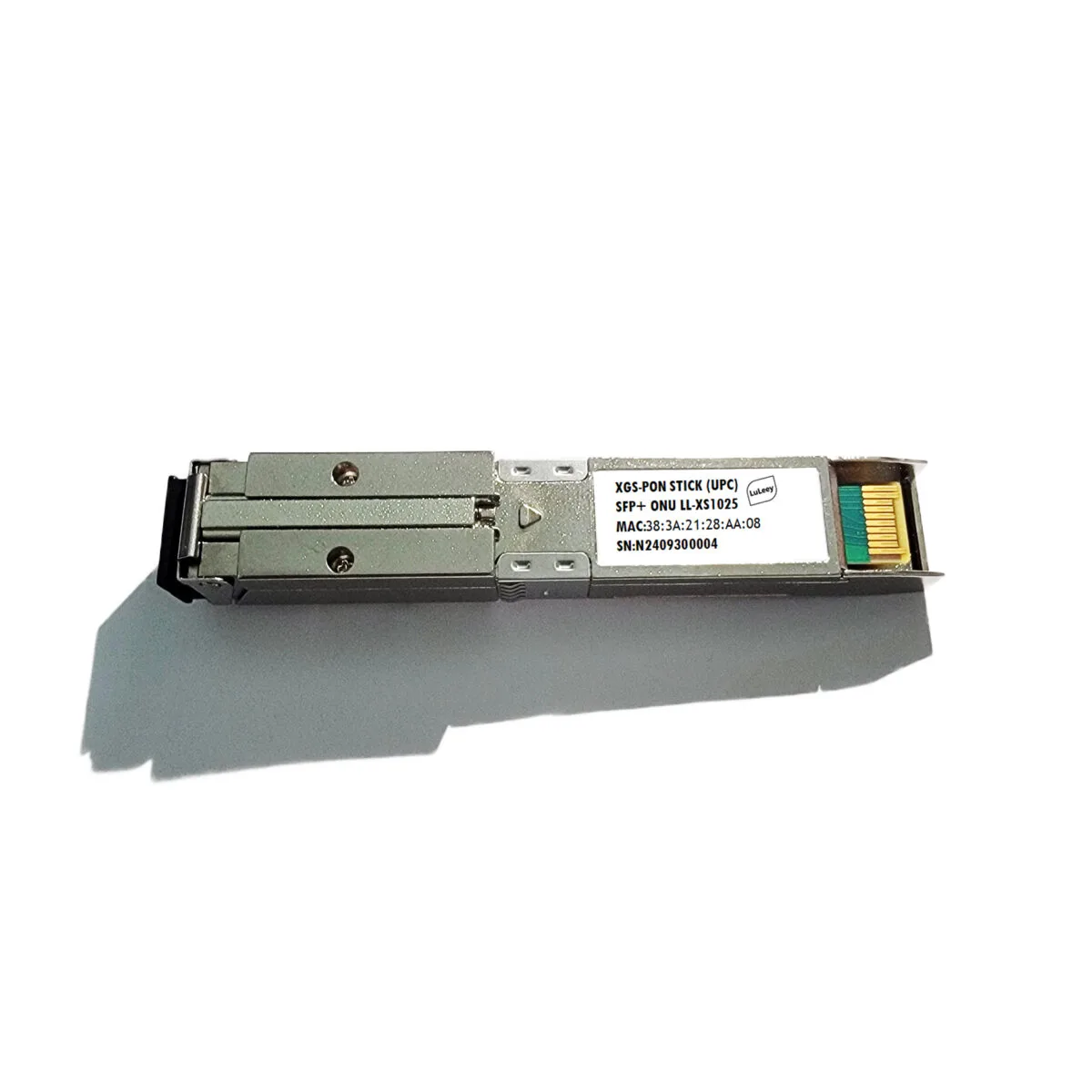

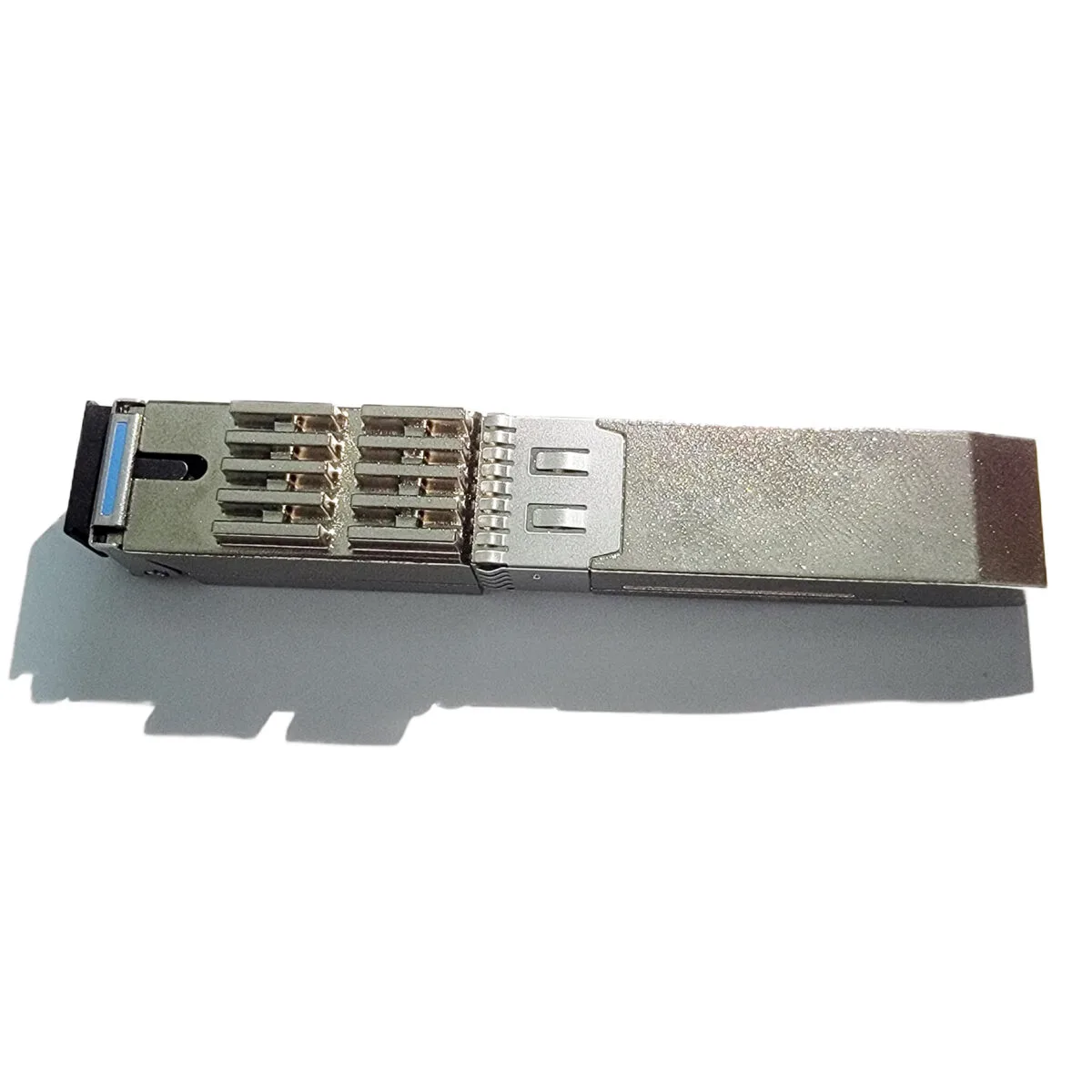

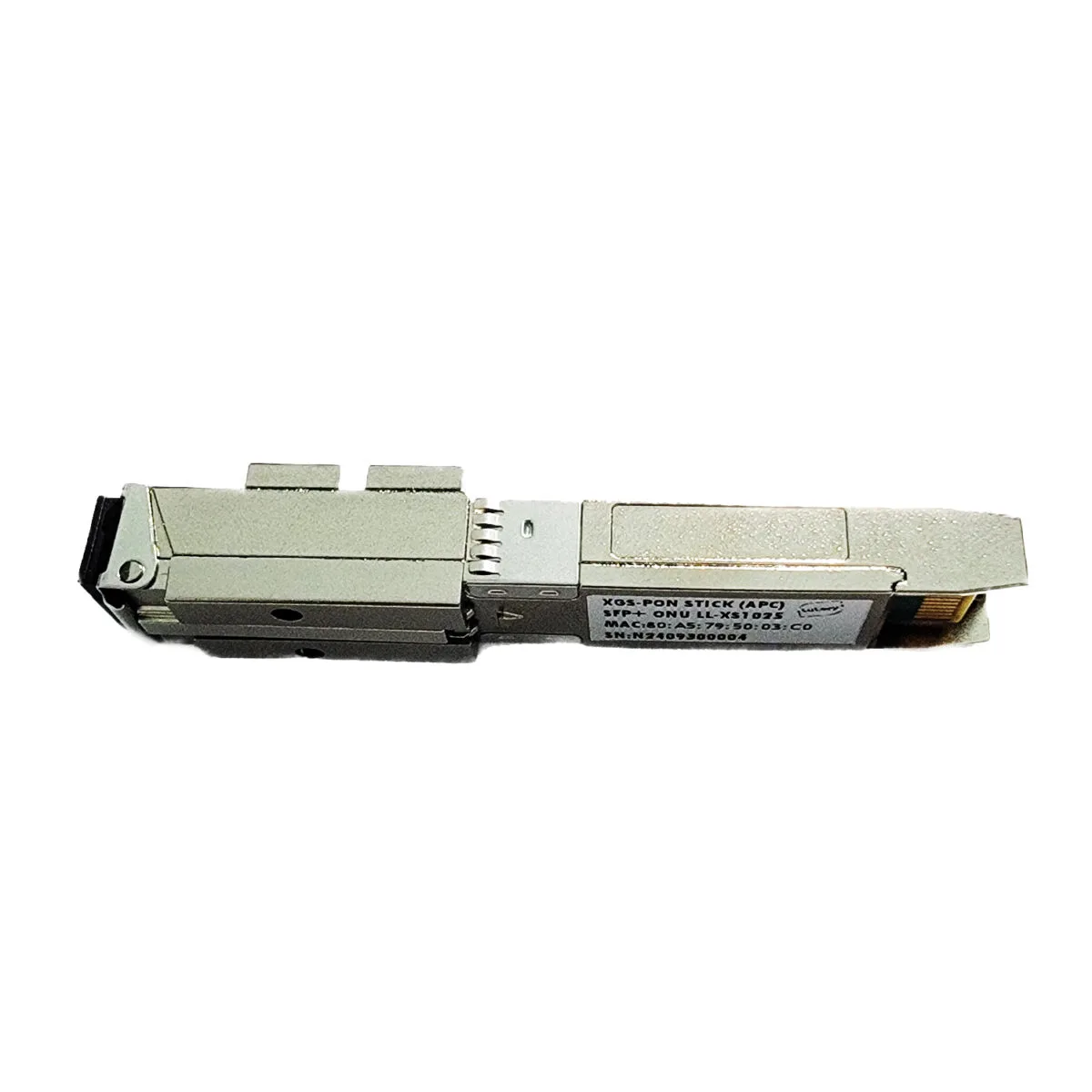

XGSPON STICK ONU SFP+ Transceiver,XGPON ONU

Original price was: USD $200.00.Current price is: USD $180.00.

Insert port
LL-xs1025 OS	Clear

SKU: XGSPON STICK ONU SFP+ Transceiver Category: 10G EPON ONU/XG-PON/XGS-PON Tags: 10G ONU, LL-XS1025, WAS-110, XGPON, XGSPON STICK

Compare

Add to wishlist

XGSPON STICK ONU SFP+ Transceiver support 20 km transmission distance with SMF
SFP package with SC APC/UPC receptacle
Support of XGPON/XGS-PON
Supports symmetric and asymmetric protocols

Guaranteed Safe Checkout

Description

Features

Custom XGS-PON SFP+ Stick Module, Support 8311 community firmware and BFW solutions firmware, you can do it by myself.
High performance with 1 GB of RAM
Widely used in US/CA/UK telecom service providers, such as AT&T
Support modify PON Serial Number (ONT ID)/Vendor ID/Equipment ID/Logical ONU ID/Logical Password/MAC…..
Support XGS-PON/XGPON network solution
Single fiber bi-directional data links symmetric TX953 Gb/s / RX 9.953 Gb/s with MAC function
SFP package with SC APC/UPC receptacle
Single 3.3 V power supply
Hot-pluggable capability
High power 1270 nm DML DFB LD and high sensitivity 1577 nm APD
Support 20 km transmission distance with SMF
CML compatible data input/output interface
Low power dissipation < 3 W
Low EMI and excellent ESD protection
Digital diagnostic monitor interface
RoHS-6 compliance
Case temperature range: Commercial: 0 °C to 70 °C
256 GEM/XGEM ports, 64 T-CONTs or 16 LLIDs
Carrier Grade QoS Engine
Advanced loopback and diagnostic capabilities
Supports Synchronous Ethernet (SyncE)

Applications

Residential home gateway
Network switch/router, VDSL MDU, and G.fast DPU
Mobile backhaul

Standard

Complies with ITU-T G.987.2
Complies with ITU-T G.9807.1, G.9807.2
ITU-T G.988 OMCI L2 MAC Bridge (Up to 64 L2 bridges)
8275/Y.1369/IEEE 1588v2
IEEE 802.1ag and ITU-T Y.1731 Ethernet OAM delay & loss measurement hardware support

Product Name	XGSPON STICK ONU SFP+ Transceiver
Brand	LuLeey
Model	LL-xs1025
Chips	MaxLinear PRX300/PRX126
RAM	1G

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit	Note
Storage Ambient Temperature	TSTG	-40	85	°C
Operating Humidity	OH	5	95	%
Supply Voltage	Vcc	0	3.6	V

Recommended Operating Conditions
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Operating Case Temperature	Tc	0		70	°C	Commercial
Operating Case Temperature	Tc	-40		85	°C	Industrial
Power Supply Voltage	Vcc	3.13	3.3	3.47	V
Power Supply Current	Icc			1200	mA
Nominal Upstream Line Rate			9.953		Gb/s
Nominal Downstream Line Rate			9.953		Gb/s

Transmitter Optical Characteristics
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Average Launch Optical Power	Pout	4		9	dBm
Power-OFF Transmitter Optical	Poff			-45	dBm
Extinction Ratio	ER	6			dB
Centre Wavelength	lc	1260	1270	1280	nm
Spectral Width (-20 dB)	Dl			1	nm
Side Mode Suppression Mode	SMSR	30			dB
Eye Diagram		Compliant With802.3av

Transmitter Electrical Characteristics
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Input Differential Impedance	ZIN	90	100	110	Ω
Data Input Swing Differential	VIN	200		1000	mV
Burst Disable		2.0		Vcc	V
Burst Enable		0		0.8	V
Tx-Fault Voltage – Low		0		0.8	V
Tx-Fault Voltage – HIGH		2.0		Vcc	V

Receiver Characteristics
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Optical Center Wavelength	lc	1575	1577	1580	nm
Sensitivity	SEN			-29	dBm
Receiver Overload	OL	-9			dBm
LOS Assert	SDA	-40			dBm
LOS De-Assert	SDD			-29	dBm
LOS Hysteresis		0.5		5	dB
Data Output Swing Differential	Vout	300		1200	mV
LOS	High	2.0		Vcc	V
LOS	Low	0		0.8	V

Pin Description
1	VeeT	Module Transmitter Ground	Host pull-up 4.7 KΩ – 10 KΩ
2	Tx_Fault	Module Transmitter Fault	Low = normal, High = abnormal, Host pull-up 4.7 KΩ– 10 KΩ
3	Tx-Disable	Transmitter Disable; turns off transmitter laser
4	Mod-Def(2)	SDAI2C Data line	2 wire serial ID interface, SDA, Host pull-up 4.7 KΩ– 10 KΩ
5	Mod-Def(1)	SCLI2C Clock line	2 wire serial ID interface, SCL, Host pull-up 4.7 KΩ– 10 KΩ
6	Mod-Def(0)	Module Absent, connected to VeeR	Connected to VeeT or VeeR in the module, Host pull-up 4.7 KΩ – 10 KΩ
7	Rate Select	For Dying Gasp detect, input low active
8	LOS	Loss of Signal	High = loss of signal, Low = normal operation, Host pull-up 4.7 KΩ – 10 KΩ
9	VeeR	Module Receiver Ground
10	VeeR	Module Receiver Ground
11	VeeR	Module Receiver Ground
12	RD-	Inverted Received Data Out	Internally AC-coupled
13	RD+	Non-inverted Received Data Out	Internally AC-coupled
14	VeeR	Module Receiver Ground
15	VccR	Module Receiver 3.3 V Supply
16	VccT	Module Transmitter 3.3 V Supply
17	VeeT	Module Transmitter Ground
18	TD+	Non-Inverted Transmit Data in	Internally AC-coupled
19	TD-	Inverted Transmit Data in	Internally AC-coupled
20	VeeT	Module Transmitter Ground

Pin-out Drawing

Package Outline

EEPROM Block Diagram

Digital Diagnostic Monitoring Interface
Parameter	Range	Accuracy	Calibration	Notes
Temperature	0 to 70 °C	±3 °C	Internal	Commercial
Voltage	3 to 3.6 V	±3%	Internal
Bias Current	0 to 131 mA	±10%	Internal
TX Power	4 to 9 dBm	±3 dB	Internal
RX Power monitor	-29 to -9 dBm	±3 dB	Internal

Ordering Information

Part No.

Package

Data Rate

Reach

Wavelength

Temp.

XGSPON STICK

TX: 9.953 Gb/s

RX: 9.953 Gb/s

20 km

TX: 1270 nm

RX: 1577 nm

0 to 70 °C

Warnings

Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended.
Follow guidelines according to proper ESD procedures.
Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.

Additional information

Weight	0.15 kg
Dimensions	10 × 10 × 10 cm
Insert port	SC APC , SC UPC
LL-xs1025 OS	community version , original version
