XGSPON / XGPON STICK with 10G Media Converter,XGS-PON ONU, LL-XS1025

Description

Simplest XGS-PON ONU XGPON STICK solution

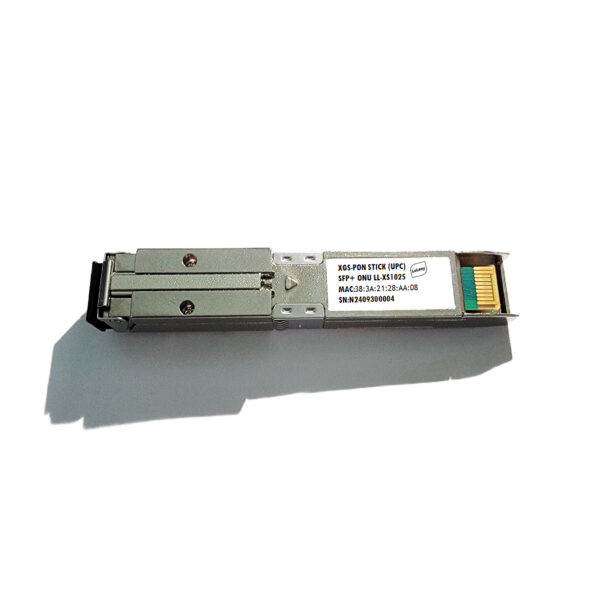

[XGSPON STICK SC UPC]

• Custom XGS-PON SFP+ Stick Module, Support 8311 community firmware and BFW solutions firmware, you can do it by myself.
• High performance with 1 GB of RAM
• Widely used in US/CA/UK telecom service providers, such as AT&T
• Support modify PON Serial Number (ONT ID)/Vendor ID/Equipment ID/Logical ONU ID/Logical Password/MAC…..
• Support XGS-PON/XGPON
• Supports symmetric and asymmetric protocols

[10G Media Converter]

• 10G Media Converter Provide one 10 Gigabit optical port, one 10 Gigabit adaptive electrical port
• Copper port supports 1000Base-T, 2.5/5/10GBase-T auto-negotiation
• IEEE802.3x flow control supporting full duplex
• Support half-duplex back pressure flow control
• Working wavelength 850nm, 1310nm, 1550nm optional
• Provide multiple fiber transmission modes such as dual fiber multimode, dual fiber single mode and single fiber single mode
• Low power consumption, low heat, can work stably for a long time

[SC/UPC-SC/APC Converter]

• SC/UPC Male to SC/APC Female, Metal Housing, Zirconia Sleeve;
• 0 dB attenuation;
• Return loss(1310nm)≥ 50DB
• Return loss(1550nm）≥ 50dB
• Insertion loss(1310nm) ≤0.30dB
• Insertion loss(1550nm) ≤0.30dB
• Connects SC fiber environments to SC fiber applications
